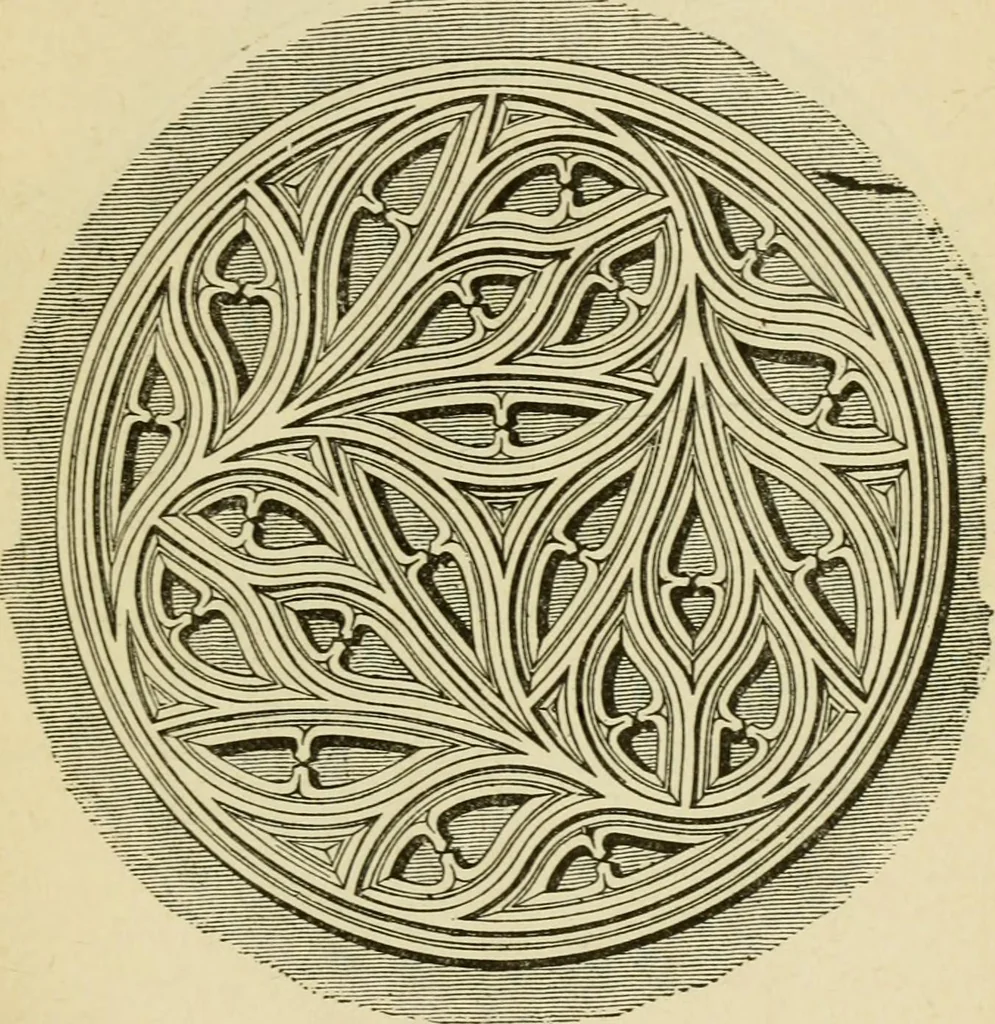

ut the results will well repay for the labor. ^ Fig. 217. And will open up new and unexplored fields forpractice, for hundreds of designs may be formedby aid of the knowledge gained in understandingthe examples herewiil> presented. ARCHITECTURAL DRAWING SELF TAUGHT 195 The diagram sho\vn at Fig.… … Fig. Z18. Student will soon be able to draw the completedwork, Fig. 218. In Fig. 219 we have another skeleton for astill more elaborate piece of w^ork. The centers 1«6 ARCHITECTURAL DRAWING SELF TAUGHT are all shown by black dots, and portions of thecurves are also given. The completed workshown at…
