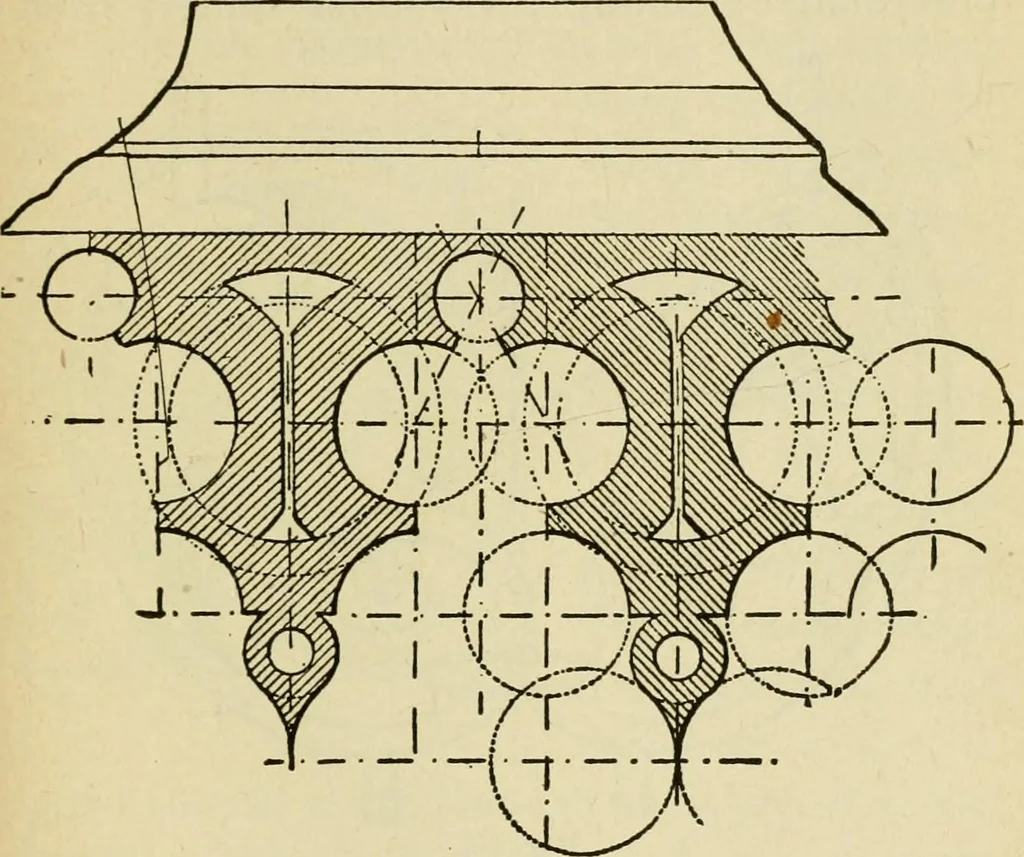

and will follow them up with others of a morecomplicated nature. The illustrations shown at Figs. 221 and 222 ARCHITECTURAL DRAWING SELF TAUGHT 199 show the finished work, and working diagrams.The method of drawing these curves and orna-ments is quite apparent, the centers are allgiven, and the… … Fig. 223. examples will enable the draftsman to describethem in quick time, and will give him an insightinto the methods employed in designing orna-ments of this kind. Another very simple design, and one thatrequires but little description on the manner 200 ARCHITECTURAL DRAWING SELF TAUGHT of…
