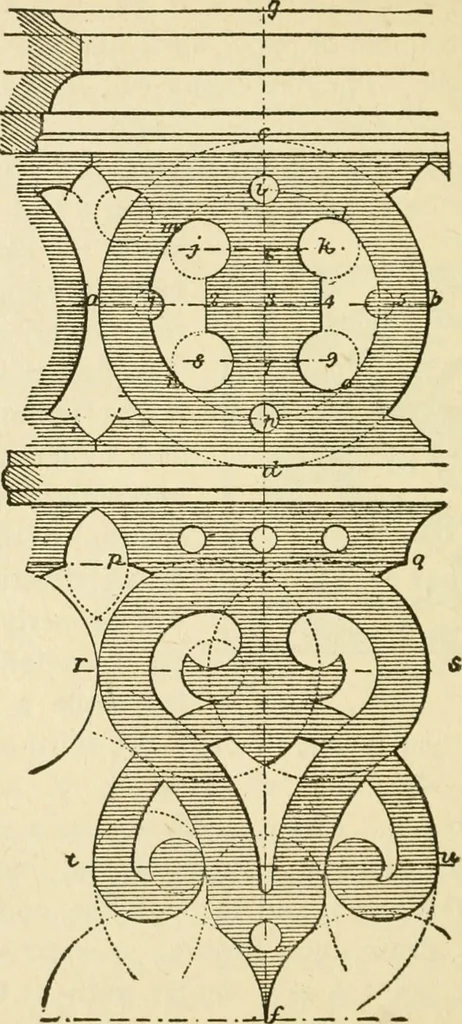

Fig. 225. 802 ARCHITECTURAL DRAWING SELF TAUGHT … Fig. aa6. ARCHITECTURAL DRAWING SELF TAUGHT 203 and 7, produced to right and left, describe fromthe centers j, k, 89, the arcs of circles which willjoin the parts of circle, i5, hi, as 5I, Im, hn, 50,with the sides 2 and 4 of the square. The smallcircles as j, k, 89, give the standard for the
