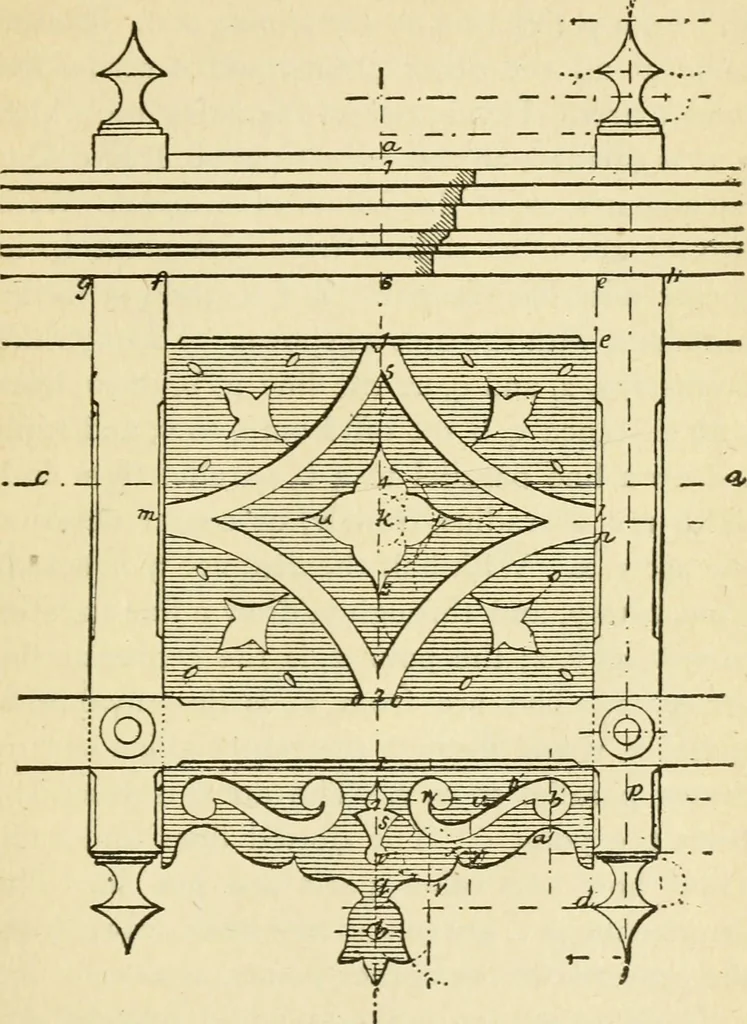

the sixth and seventhpoints. From the line d, set off to e, and f, andmake f, g; e, h, each equal to two-thirds of oneof the parts on a, b, as 7, 8. Through the point2, draw a line parallel to c, d, through e, f; g,h, draw lines parallel to a, b. Make b, j, equalto c, f, and through j, draw a line… … Fig. 2 28. from the points j, k, o, and m, on each side ofthe center lines, as to o, and n. from 2. and i. 206 ARCHITECTURAL DRAWING SELF TAUGHT From these points as centers, as o, and n, withradii equal to o, i, describe arcs cutting as at p,and from p, describe an arc joining o, n. Do thesame at…
