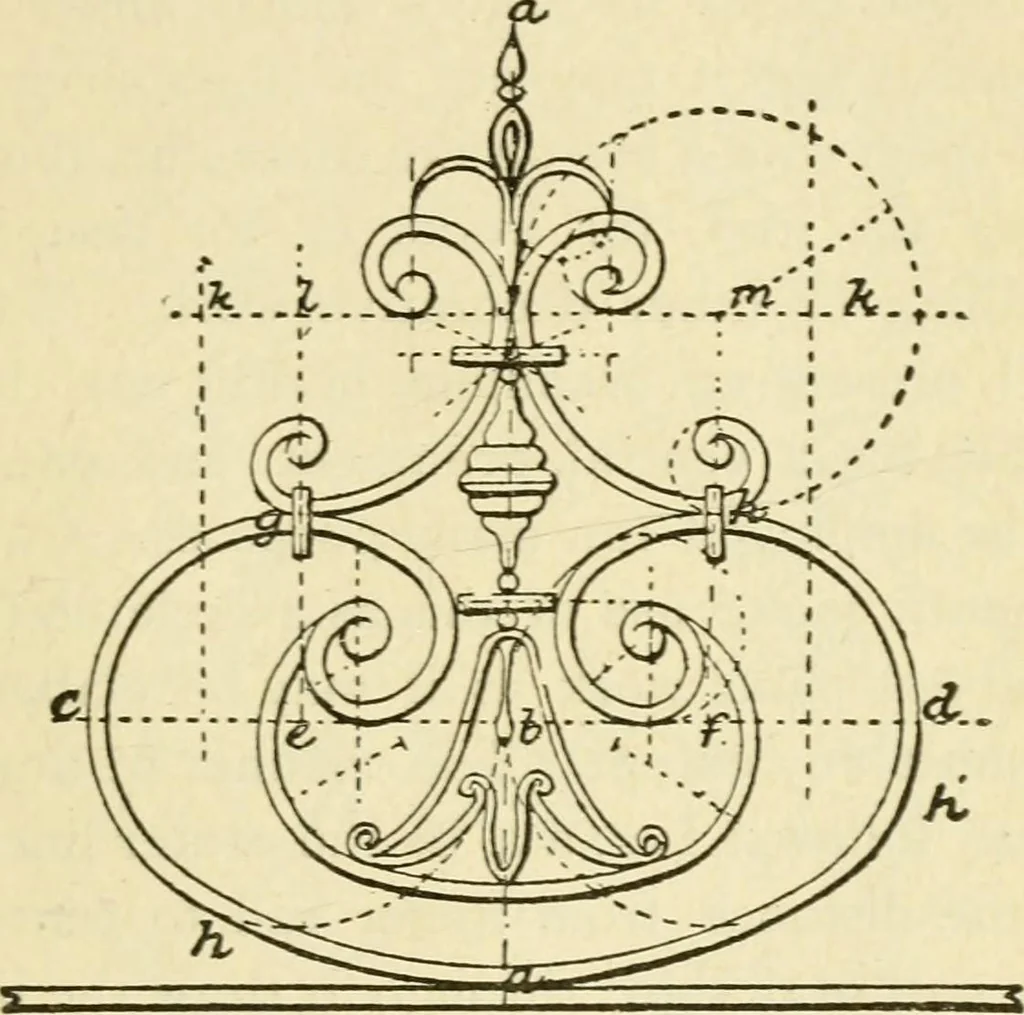

of the arcs being at c, c. Thelower arc, d, f, is described from the center g,which is on a line drawn through a point thethird in the distance b, I, on the line b a. Todescribe the part marked A, cut out the part B, ARCHITECTURAL DRAWING SELF TAUGHT 213 B. From the point m, o, and n, and p,… … Fig 231. space between them equal to the space at c, as1, 1, and with a radius equal to the diameter ofthese circles, describe from the points 1, 1, thearcs m, n; m. n. From n, n, which are equidistantfrom the center line, a space equal to the radiusof the small circles n, p; describe with radius…
