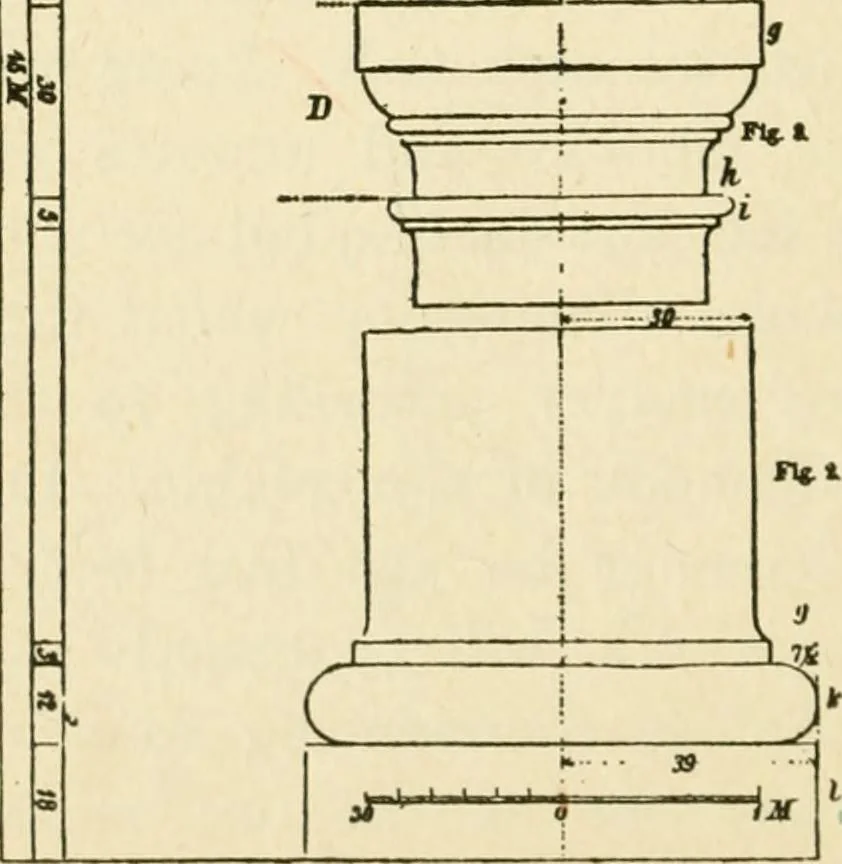

utes arenot fixed ones like feet and Inches, but are vari-able as to the actual dimensions which theyexpress — larger or smaller according to theactual size of the diameter of the column. Forinstance, if the diameter be just five feet, aminute being one-sixtieth, will be exactly oneinch. Therefore,… … -wi ^. «^-H I*- ^ ««.«. ! i„f—^ 1 !I »A -H ! ! j ! I ajk 1 it H—^1 Ii i i Fig. 239. ARCHITECTURAL DRAWING SELF TAUGHT 2S7 from that form a scale of equal parts, by sixtydivisions, then lay off the widths and heights ofthe different members according to the propor-tions of the required order as…
