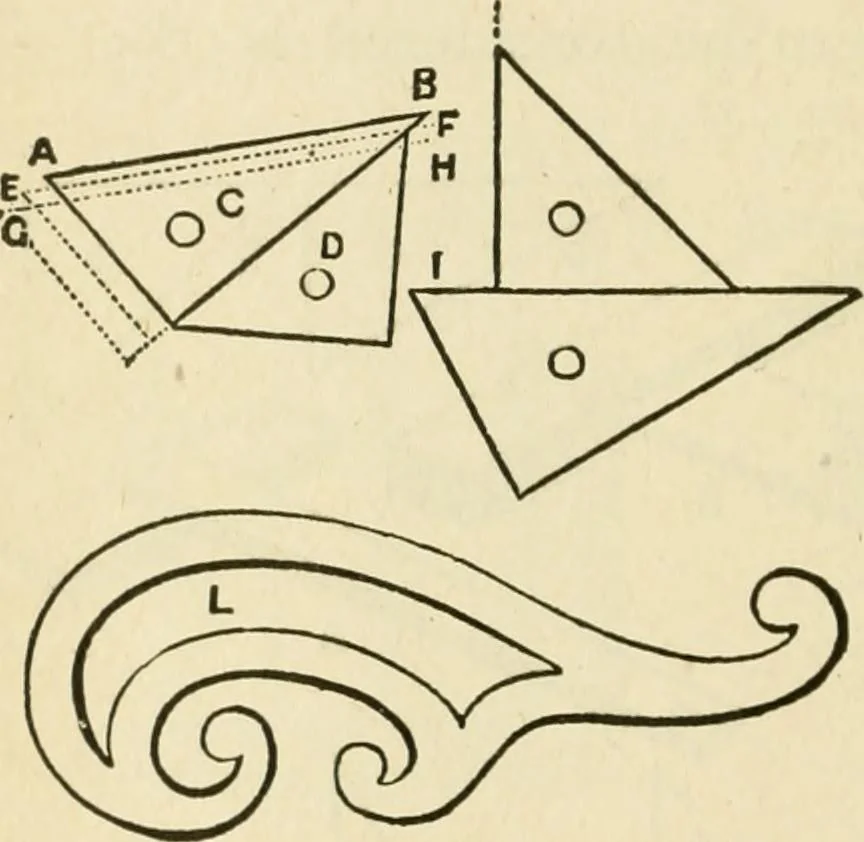

ec-centric curves,which the com-passes are notable to describeas in medievalmouldings ofsome forms. Ini n k i n g - i n acurve by the aid of one of these appliancesthe edges must be turned about on the pencilleddrawing until some part is found whichcorresponds, when the edge of the curve willguide… … Fig. 9. ARCHITECTURAL DRAWING SELF TAUGHT 27 The set square or squares, similar to thoseshown at Fig. 9, C, D, K and B, are great aids
