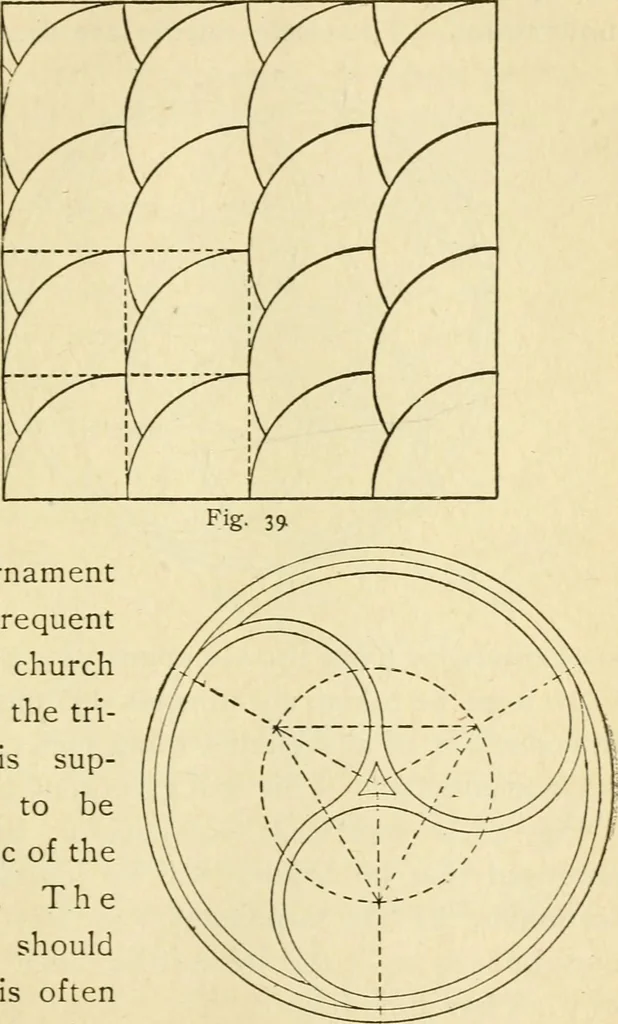

n by the dottedlines. The three examples shown in Figs. 40, 41, and4.2 are a little more difficult to draw than the•«j>revious ones. Fig. 40 may be termed a trefoilornament, as the central divisions are drawn ARCHITECTURAL DRAWING SELF TAUGHT 5& from the three points of an equilateral… … Fig. 40. ■60 ARCHITECTURAL DRAWING SELF TAUGHT he can draw or describe it from memoryalone. Fig. 41 is simple enough when the principle isunderstood. The circles inside are drawn from
