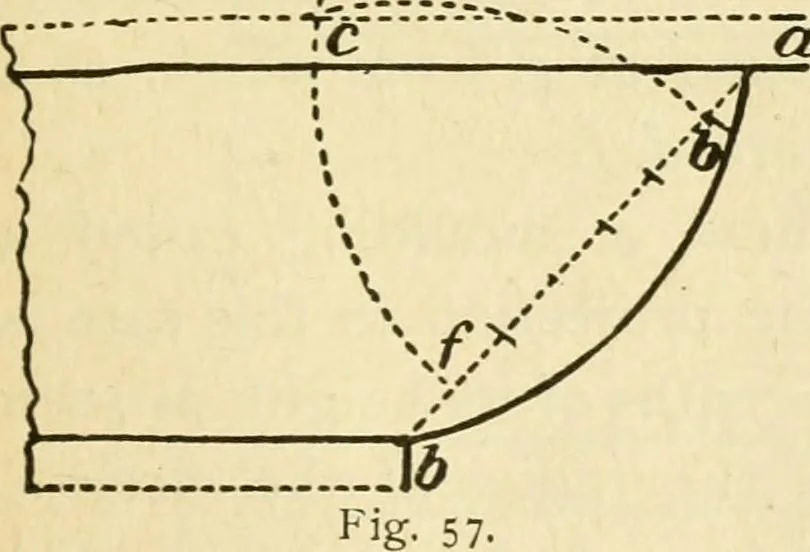

g. 56. getting a deeper moulding. Let a, a, be the upper line and c, c, the lower; from a, drop a perpendic; ular to c, divide a, c, into seven equal parts; through the third of these, from a, draw a line _ parallel to a, a,from b, with b, a,draw the semicir-cle b, d, and fromd, draw to e,… … 70 ARCHITECTURAL DRAWING SELF TAUGHT employed largely by the Greeks in manypositions. Let a, b be the two points; join themby a line a, b\ divide this into seven equal parts;from b, with b, c, and from a, with the sameradius^ describe arcs cutting in c; from c, withr, a, describe the arc a, b.…
