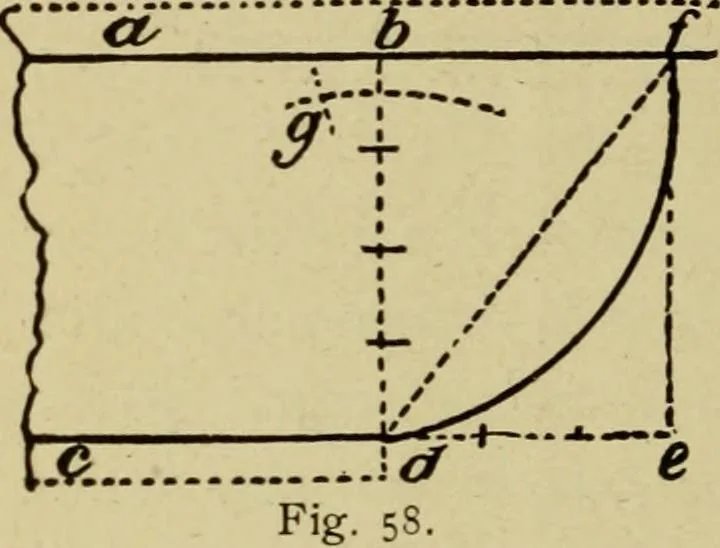

ively, describe the arc, cutting at g, from which, as acenter, describe the arc, d, f. At Fig. 59 I show a moulding called aquirked ovolo. The projection in this case ismade equal to five-sevenths of its height, as seenby the divisions, and the radius of the circle <5, c, is made equal to two of… … ARCHITECTURAL DRAWING SELF TAUGHT 71 f, a, perpendicularly to g;, k, and make ^, /,equal to the radius d, c, of the circle b, c\ join/,
