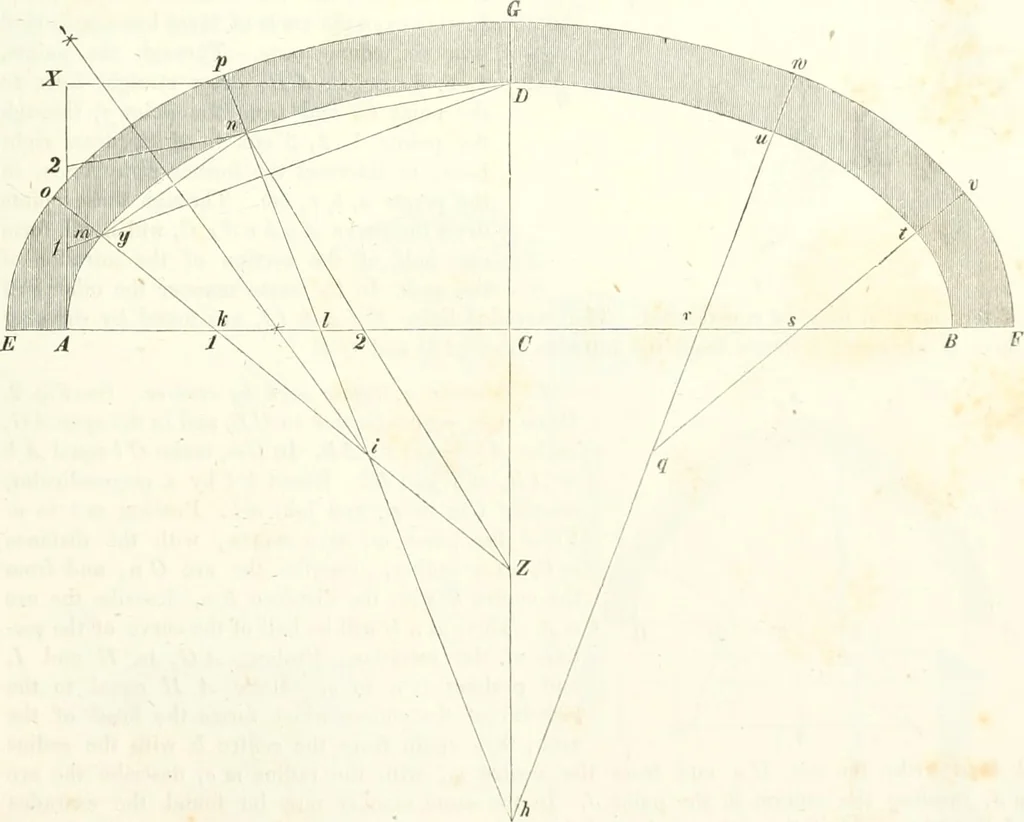

92 ARCHES sect AB in I. In CB, make C r equal to C I, and from h, through r, draw /; v. In h r,make h q equal to h i, and in C B, make G s equal to C h. Join q s, and prolong q s io t.From the centre h, with the radius A D, describe the arc n u, and from the centres i andq, describe the arcs n y…
