Building construction and superintendence, by F.E. Kidder ... (1896)
Kidder, Frank E. (Frank Eugene), 1859-1905 · New York, W.T. Comstock · leaf 117

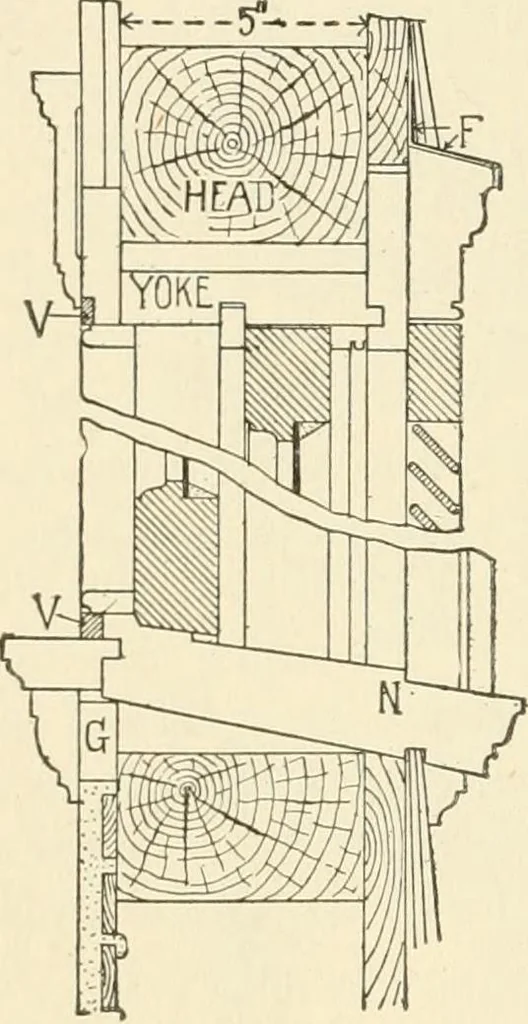

ey are fastened with small finish nails. Thicknesses.—All parts of the window frame except the sill andyoke are commonly made of -§-inch stuff. For large windows thepulley stiles should be 1^ inches thick, and if no strip is inserted be-tween the outer sash and the casing, the latter should also be… … Fig. 96. SHEATHING, WINDOWS, ETC. 115 advantage. The parting strip, E, is usually made f of an inch thickfor if-inch sash, and \ inch thick for if or 2^-inch sash. The yokeis made from } inch to if inches thick, according to the custom ofthe locality. A thickness of i-|- inches is just as good as…
