Radford's cyclopedia of construction; carpentry, building and architecture. Based on the practical experience of a large staff of experts in actual constrcution work (1909)
Johnson, Alfred Sidney, 1860-, Radford, William A., 1865- · Chicago Radford Architectural Co · leaf 69

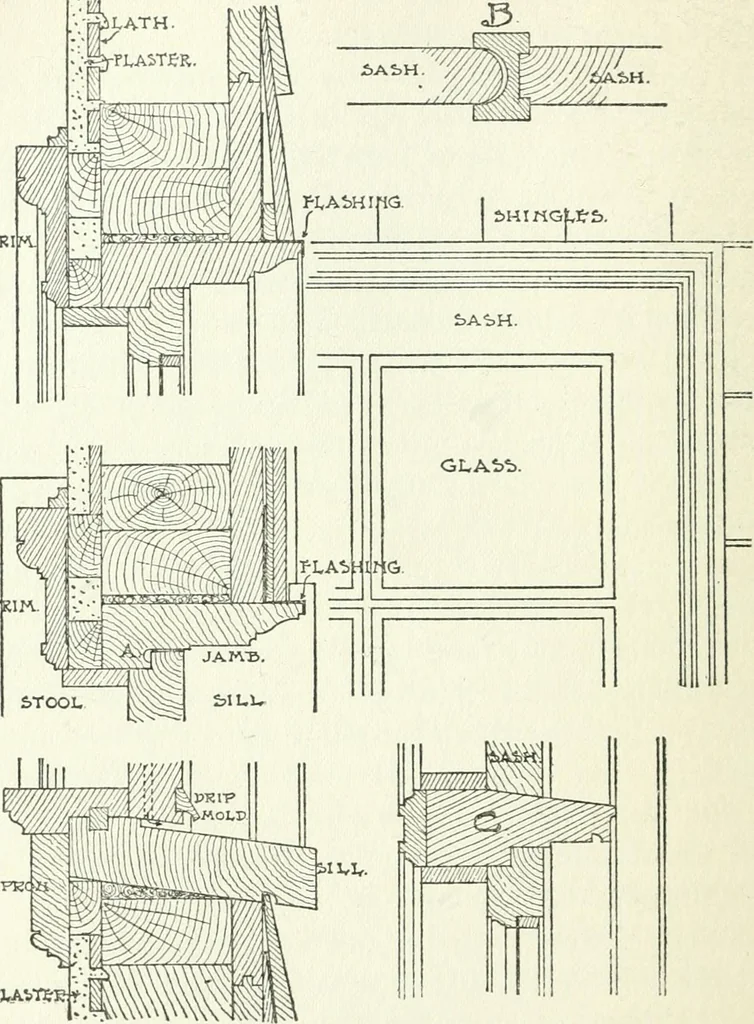

featureis frequently considered desirable from thestandpoint of appearance. The fiame wall is constructed in the usualmanner of 2 by 4-inch studs, placed 16 incheson centers, and doubled for jambs, heads, andsills of openings. The studs are covered on theoutside with matched sheathing boards,… … PlAV-nrKJ* Fig. 25. Framing for Outward-Opening Casements. The frame is made from 2-inch stock, rebatedand moulded as shown, and projects beyond theoutside surface of the sheathing boards not less FRAJMING 47 than one and tliree-cigliths inches, so that theshingles or other exterior wall covering…
Architecture · Building
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
