Building construction and superintendence, by F.E. Kidder ... (1896)
Kidder, Frank E. (Frank Eugene), 1859-1905 · New York, W.T. Comstock · leaf 131

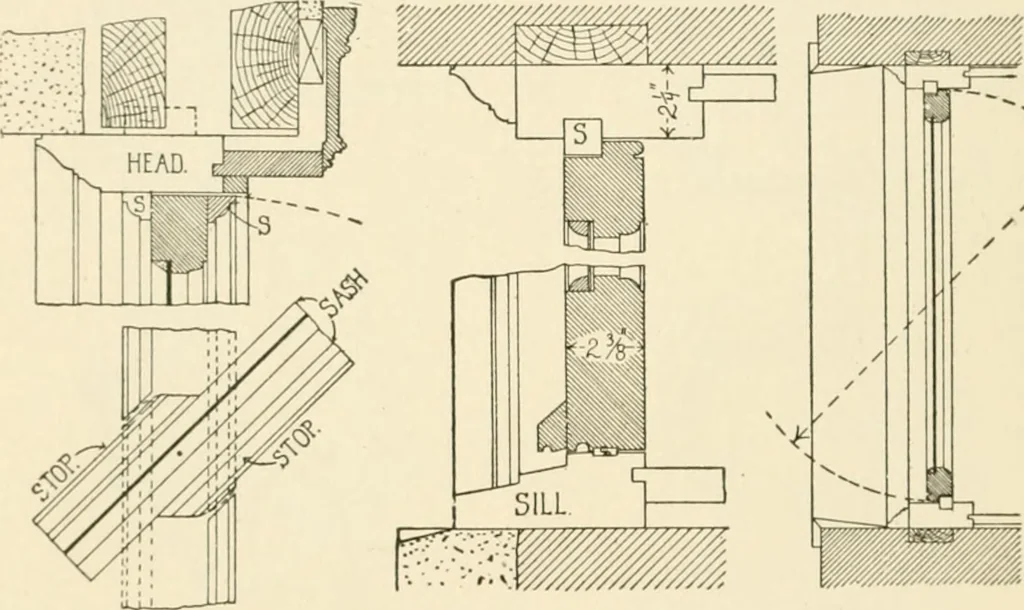

top, the danger from leakage is not muchgreater than in a double-hung window. The frames for such win-dows should always be made of plank ; they should not be r<but made as shown in Fig. 112, with stops, S S, nailed partly to theframe and partly to the sash, as shown. Both stops are cut on a… … SECTION OF Sll Fig. ..3. Fig 112. B. Windows Pivoted Top and Bottom.— Large plate glass win-dows, w hen of a single light, are generally pivoted at the top and bot-tom, and when the sash is of an unsymmetrical shape, as in the case ofthe outer sash in the window shown at 1, Fig. 93, this is about…
