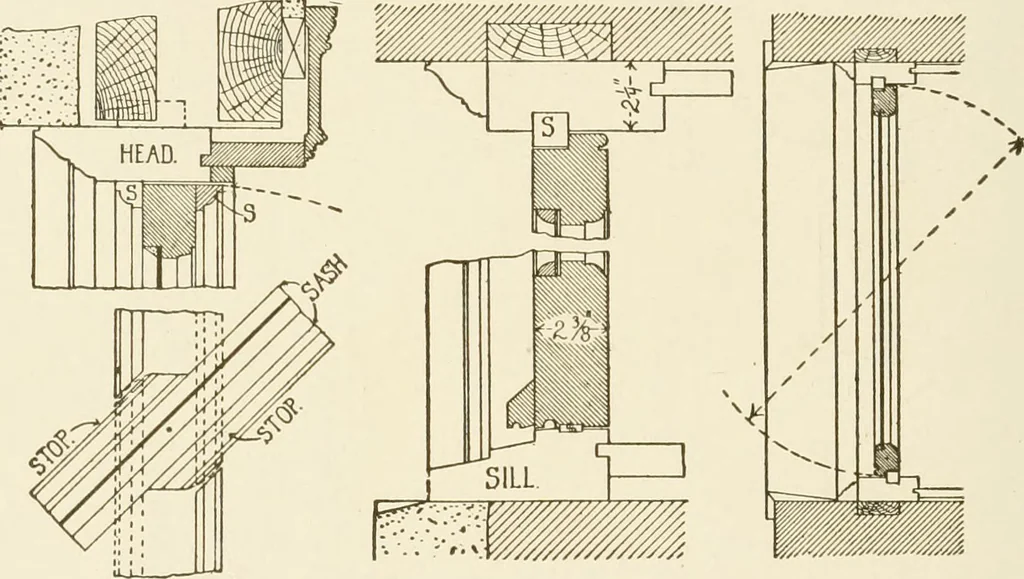

akage is not muchgreater than in a double-hung window. The frames for such win-dows should always be made of plank ; they should not be rebated,but made as shown in Fig. 112, with stops, S S, nailed partly to theframe and partly to the sash, as shown. Both stops are cut on a bevelnear the centre of… … SECTION OF SILL AND JAMB. Fig 112. Fig. 113. £. Wifidotis Pivoted Top and Bottom.—Large plate glass win-dows, when of a single light, are generally pivoted at the top and bot-tom, and when the sash is of an unsymmetrical shape, as in the case of.the outer sash in the window shown at I, Fig. 93,…
