Building construction and superintendence, by F.E. Kidder ... (1896)
Kidder, Frank E. (Frank Eugene), 1859-1905 · New York, W.T. Comstock · leaf 159

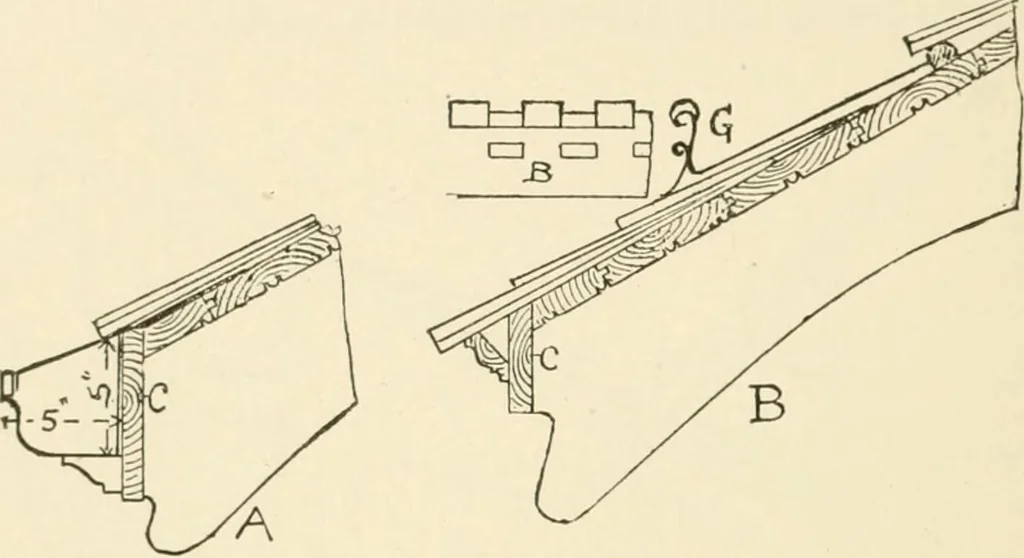

used. This gutter isformed by setting a strip of board, B, 3 or 4 inches wide on top ofthe shingles a few inches from the edge of the roof, with lira. kets, ./,placed against it about every 24 inches to keep it in position. TheV-shaped gutter thus formed is lined with tin, which should lie tackedto… … Fig. 132, Fig. 133- the edge of the board B, and on steep roofs it is better to make thedistance 3 or 4 inches. Fig. 133 shows a similar gutter made entirely of galvanized iron orcopper. Either of these gutters may be placed on any projecting eaves,whether open underneath or boxed in. The only…
