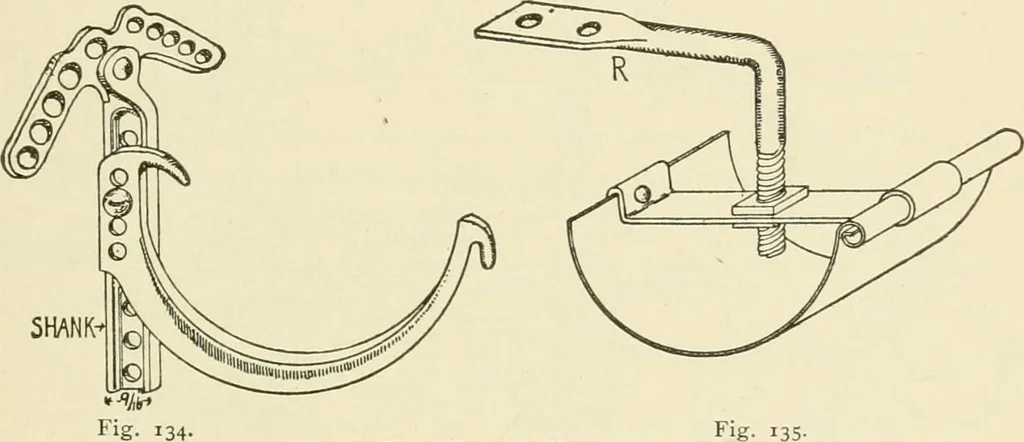

roof. Fig. 137 shows the mannerin which the gutter is generally formed, and Fig. 82 shows the samemethod applied to cornices surmounted by Mansard roofs. Suchgutters should be of ample size, with a good pitch to the bottom, andthe tin should be carried to a considerable distance above the gutter.… … Eave Trough Hangers. be used, and it is always better to use the IX thickness, as it is lesseasily punctured. The tin should be painted on the under side be-fore it is put in place, and should be painted on the exposed side af-terward. 114. Eave Troughs and Galvanized Iron Gutters.—Inmost instances…
