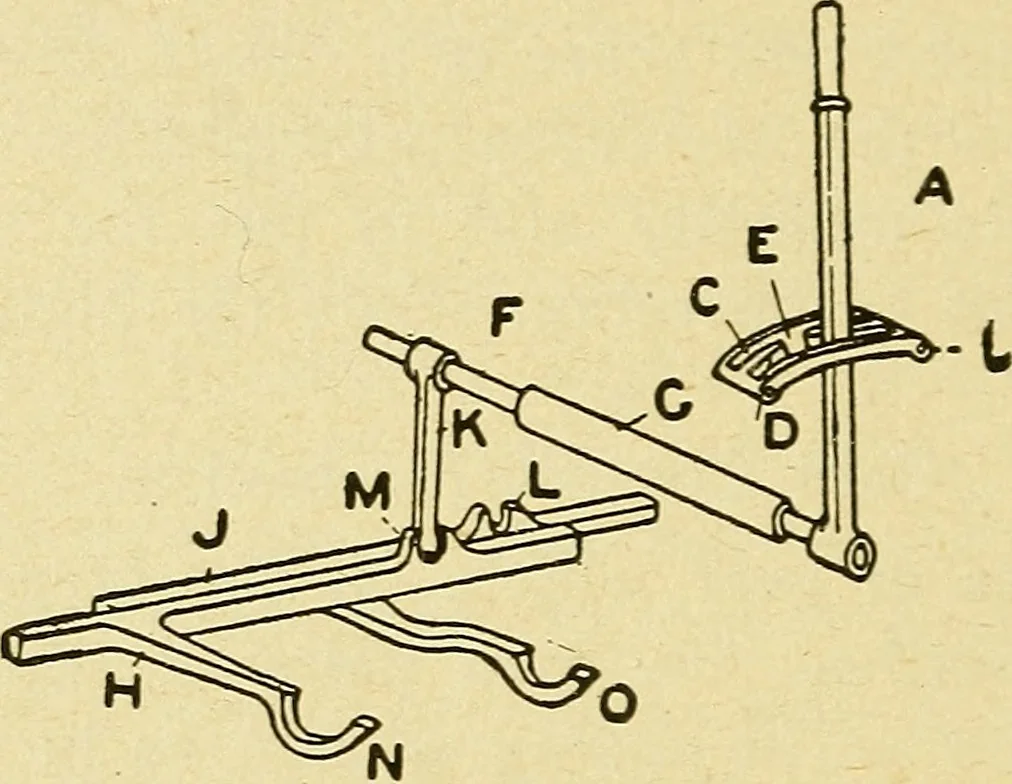

ee to oscillate in a sleeveG, or any bearing equivalent to the sleeve G, which is at-tached to some part of the car. It is also free to move end-ways inside the sleeve G. The extent of its oscillation in Gis determined by the length of the slots in quadrant B, throughwhich the lever passes. It will… … FIG. 6 .—DIAGRAMMATIC VIEW OF A SELECTOR BAR AND GATECONTROL MECHANISM. A, Change speed lever. B, Quadrant through which lever A moves.C and D, Slots in the quadrantthrough which the lever moves. E, Gate or opening between the two slots in quadrant B. F, Oscillating shaft to which levers A and K…
