Building construction and superintendence, by F.E. Kidder ... (1896)
Kidder, Frank E. (Frank Eugene), 1859-1905 · New York, W.T. Comstock · leaf 175

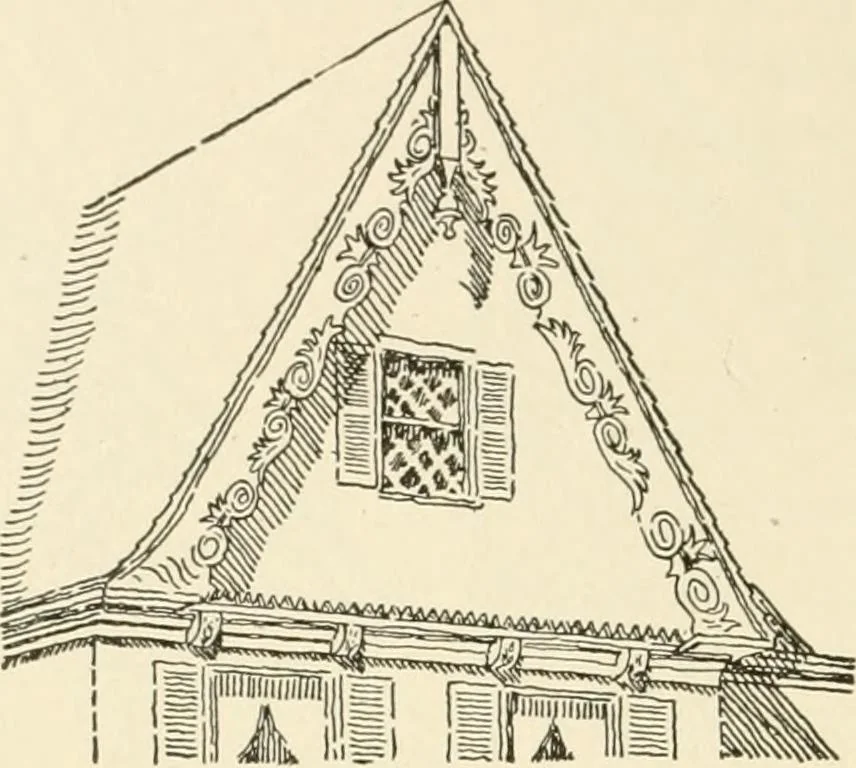

- BELT Q0UR5E JJJJI Fig- «53- With an eaves finish like that shown at A, Fig. 153, with the soffitGc the eaves and raking cornice in the same plane, the verge board 172 B UILDING CONS TR UC TJON. may be supported as shown in Section C without brackets, in whichcase the belt courses on the gable, if… … Fig. iS4- the point E, unless they are to be carried around the sides of thebuilding. The wall under the soffit should be finished with a board
