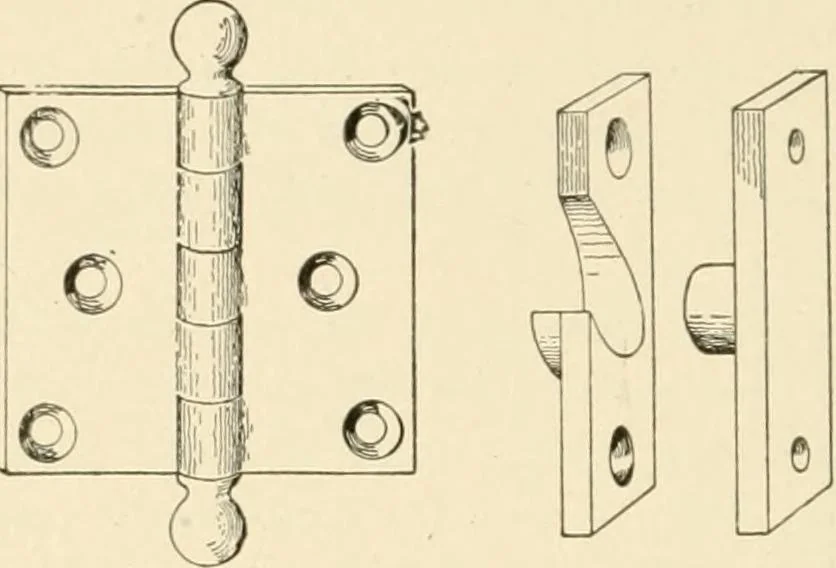

the ends, sash centres such as areshown in Fig. 410, make as good a pivot as any for transoms of or-dinary size, and the common spring window bolt, Fig. 411, alsoanswers the purpose very well where an especially fine appearance isnot necessary. There are also two or three patterns of surface… … ft f* Fig. 408. Fig. 409. Fig. 410.—Sash Centres. a ring pull is most convenient) to fasten them when closed, as nospecial fixture is required to control them when open. Large tran-soms, and pivoted transoms over outside doors should be fitted eitherwith a transom lifter or the sash adjuster, shown…
