Kidder, Frank E. (Frank Eugene), 1859-1905 · New York, Comstock · leaf 121

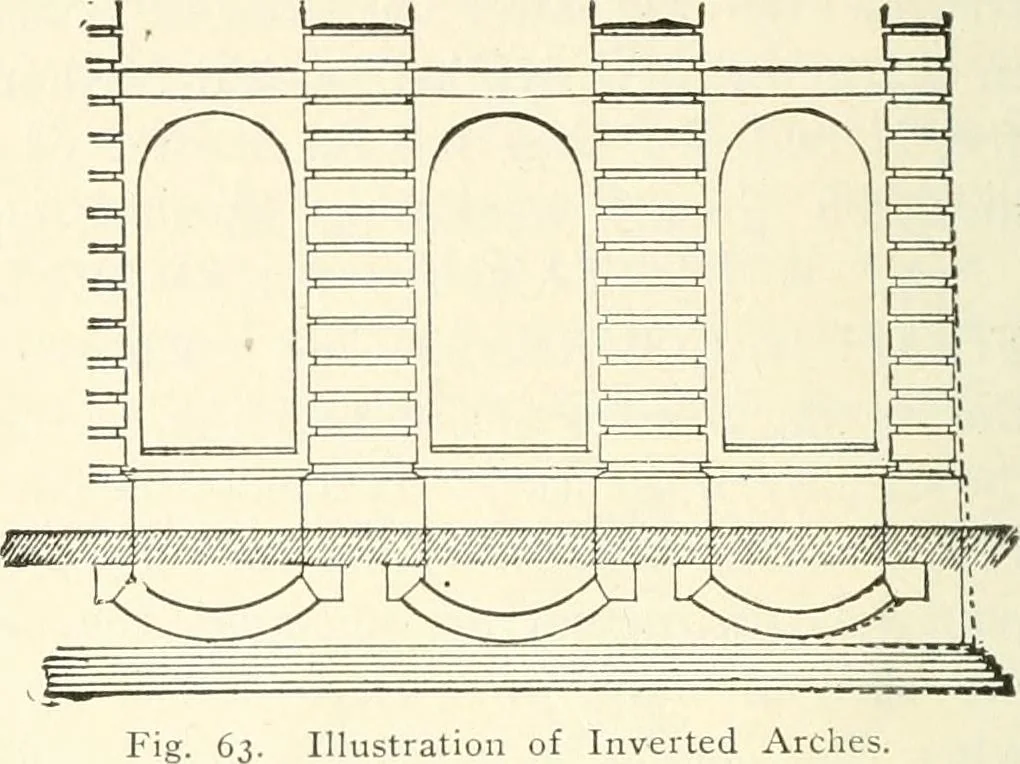

COJ m Fig. 62. Oflsets of Concrete and Brick Foot-ings Under Outside Walls. 94 BUILDING CONSTRUCTION. (Ch. Ill) … Illustration of Inverted Arches. pushed outward by thethrust of the arch, asshown by the dottedhue; and secondly, be-cause it is generally im-possible with invertedarches to make the areasof the diiTerent parts ofthe foundation propor-tional to the load to besupported. It is muchbetter to build the…
Building · Carpentry · Masonry
Internet Archive · University of Toronto, Robarts Library · Public Domain Mark 1.0. Free to use for anything.
