Kidder, Frank E. (Frank Eugene), 1859-1905 · New York, Comstock · leaf 322

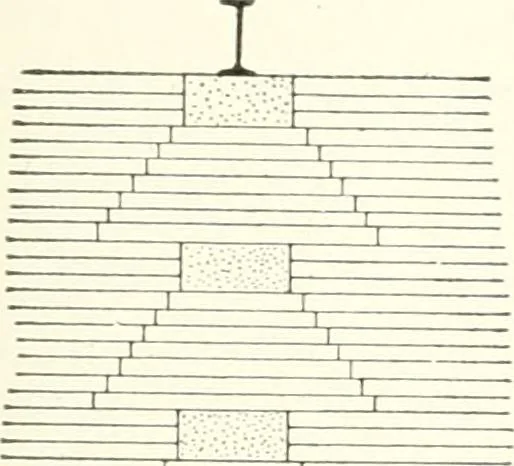

ates toolarge than too small. The bearing surface of the templatesshould be such that the pressure which ittransmits to the wall below shall not exceed120 pounds per s(]uare inch, or about 8^tons per square foot for comiuon brick-work: or 150 pounds, or about 10^ tonsjicr scjuare foot for common… … Fig. 154.—Rond-stones and Template in Brick Wall. Incorrect jMethod of Construction. 4. TREATMENT OF CUT-STONEWORK IN THE WALL. 305. LAYING OUT ASHLAR.—After the kind and size ofashlar to be used has been determined upon, the draughtsman shouldshow each piece of ashlar on the elevation drawings if…
Building · Carpentry · Masonry
Internet Archive · University of Toronto, Robarts Library · Public Domain Mark 1.0. Free to use for anything.
