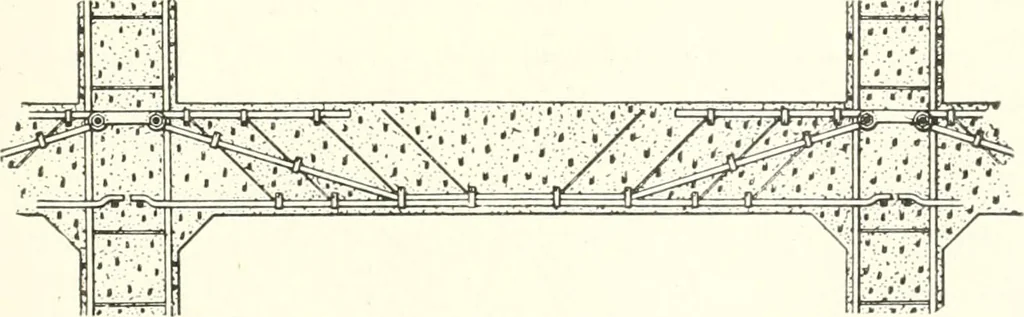

Fig. 5.25. Pin-connected Girder Frame. /■ In this frame some of the reinforcing bars run horizontally nearthe lower surface of the girder from column to column, while some … Fig. 5^:6. Concrete Girder and Columns with Pin-connected Frame. are bent up toward the supports, as shown, and are bolted togetherover them by means of links and pins, thus making a rigid con-tinuous framework of steel from wall to wall. The disposition of 692 BUILDING CONSTRUCTION. (Ch. X) the…
