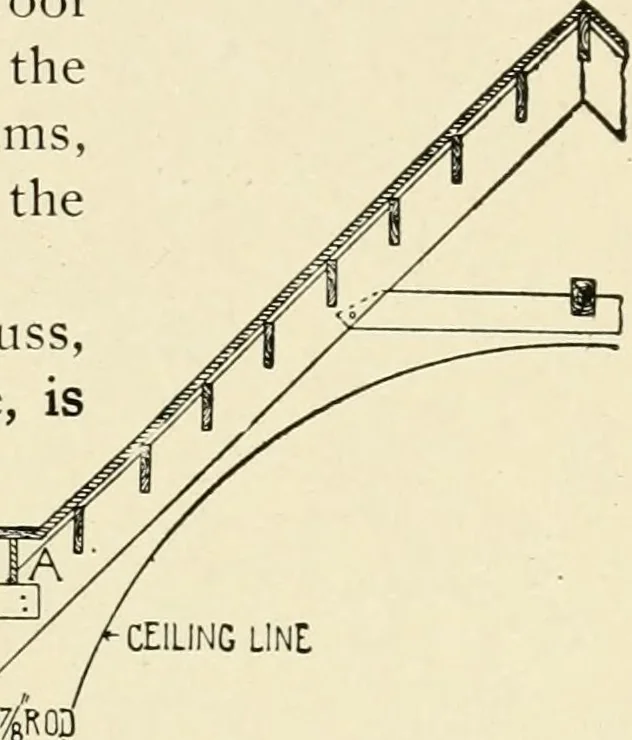

Fig. 185. that the tie-beam is raised 3 feet 8 inches above the bottom of theprincipals, so that the portion of the principals below the tie-beamhas to support the full weight of the truss. This brings a trans-verse strain at the juncture of the tie-beam and principal, and toresist it a steel plate…
