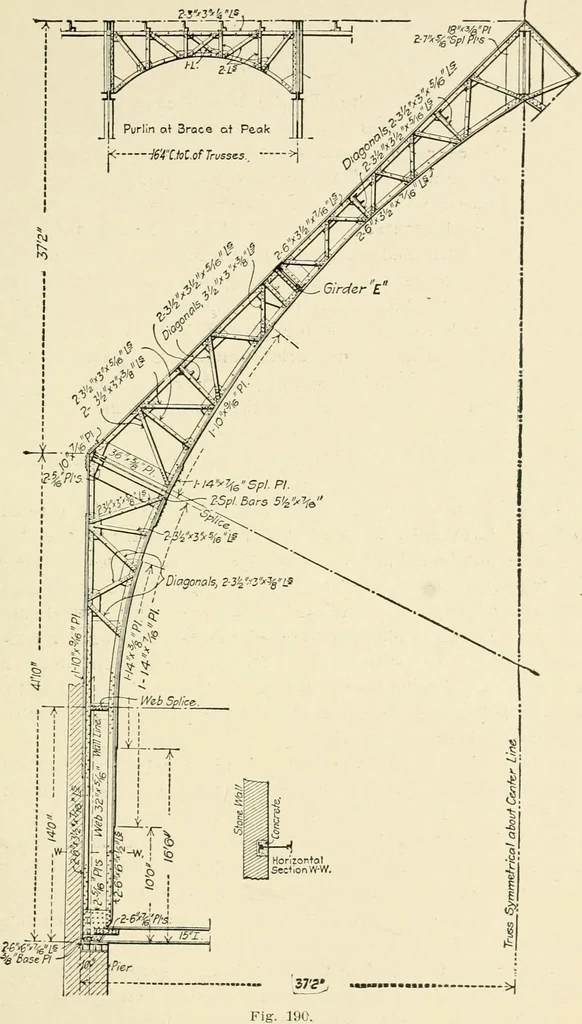

russ, the chordangles of the other trusses being 1/16^inch thinner. This truss car-ries on one side the ends of the longitudinal lattice girders, E, E,which are 31^ ft. long, and have two 6x3^x7/16-inch angles in eachflange. These girders support the ends of a special arch truss cor-responding with… … 154 BUILDING CONSTRUCTION. tre line of the transepts; they also support the ridge and valleyrafters of the transept roof which intersects the main roof like adormer. Between the other trusses a 12-inch channel purlin isused in place of the girder at E. The feet of the trusses are tiedtogether…
