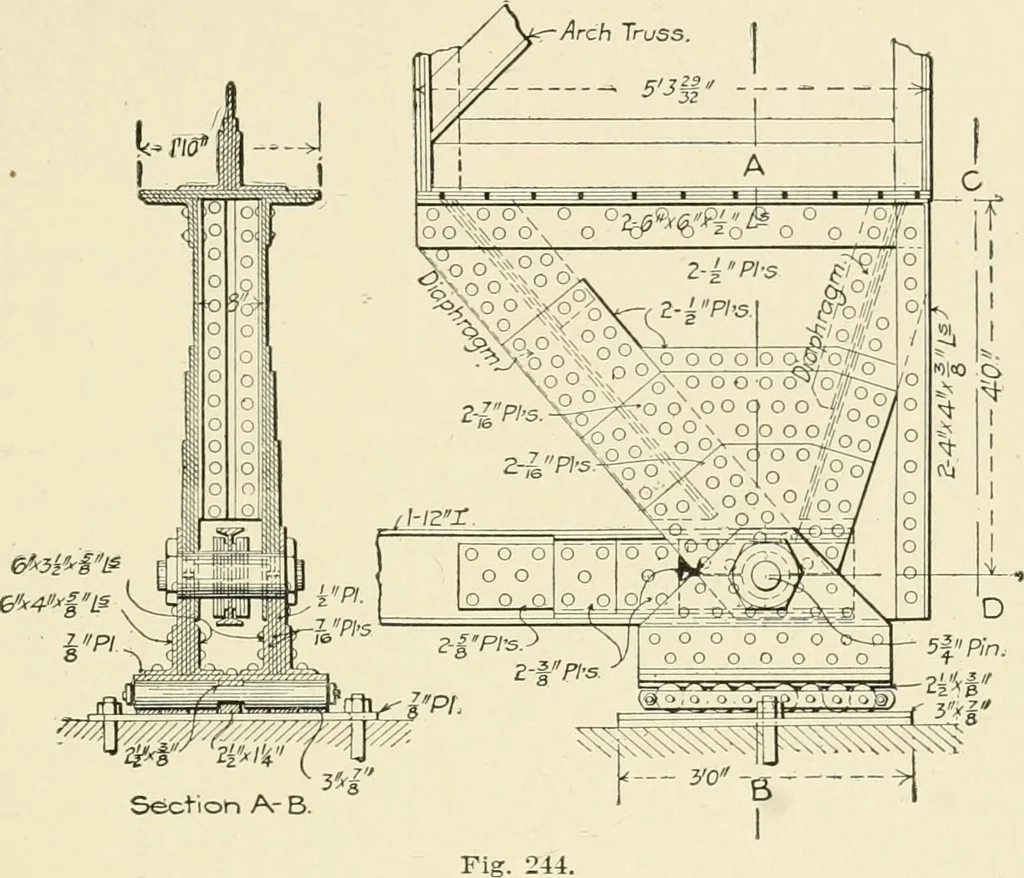

End Secfion of Inter TRAIN SHEDS. 207 jjjf l-Cov PI. 2Zft$fr59£ f … plates, 5/16-inch solid web plates are field-riveted, as shown in thedrawing of section U18, U22, Fig. 241 to form a wall surface, clos-ing the whole area of the truss. A double web shoe is field-riveted to the horizontal lower flangeat the end of the truss (Fig. 244), and has a semi-cylindrical…
