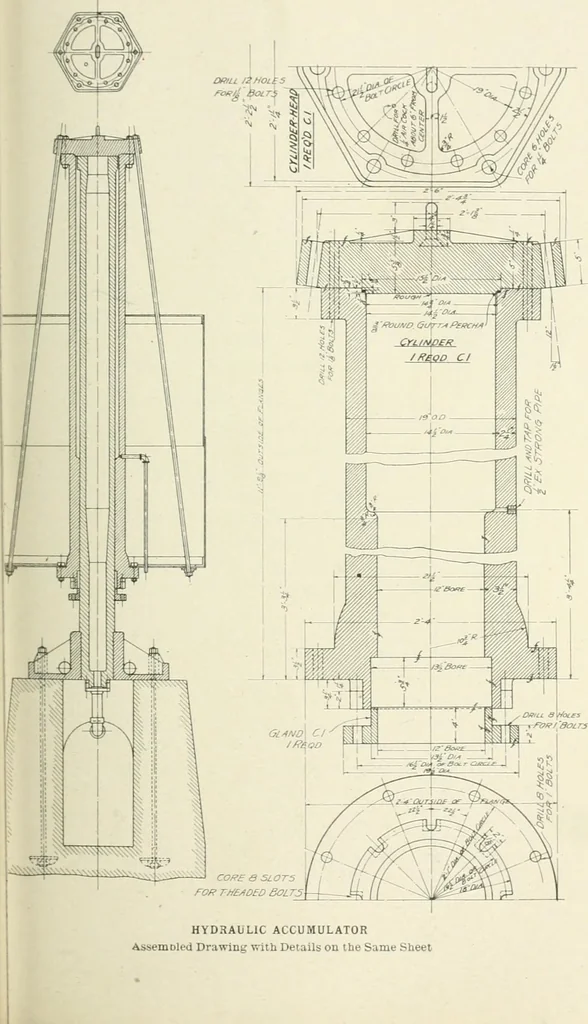

HYDRAULIC ACCUMULATORDetail Drawing, to be used with Figure on Opposite Page … Assemoled Drawing with Details on the Same Sheet MACHINE DESIGN 19 actioii of the two simple moments acting together. In otherwords, the separate niomonts combined in action, being impossibleof solution in that form, are reduced to an er^uivalent simplemoment and the solution tliin becomes the same…
