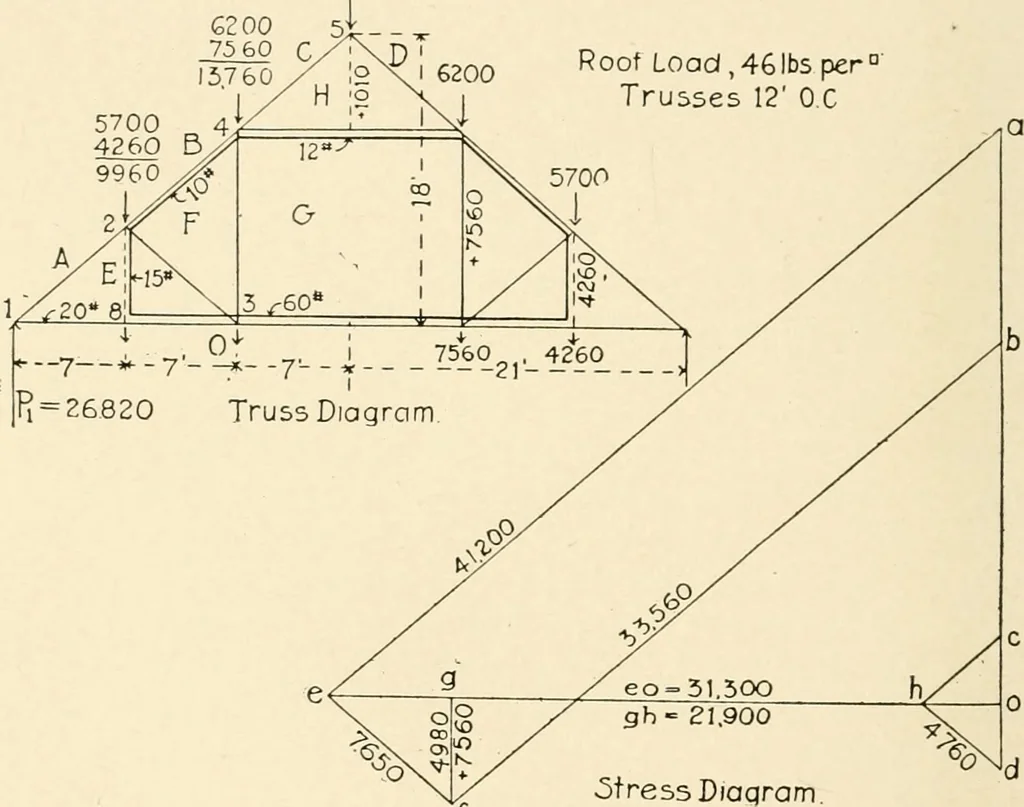

being in tension. Now, at joint 4, we have gf, fb, obtainthe point c by measuring downwards 13,760 lbs, and from c draw aline parallel to CH, and from g. the point of beginning, aline parallel to HG, until it intersects the line from c at h. hg over-lays eo, but it should be considered as a… … equal to the horizontal thrust, or component of CH and DH, that is,the apex load produces a tension in GH, which reduces the com-pressive stress by that amount. Problem 10 Fig. 284 Five Panel Howe Truss, supporting agravel roof, and plaster ceiling. Ceiling loads added to roof loads.To draw the…
