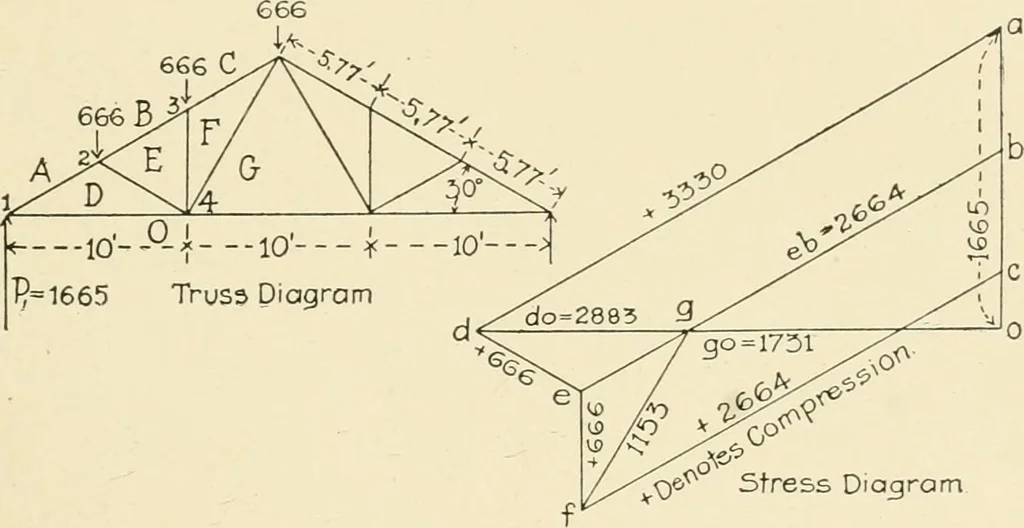

in Fig. 291, because more of theroof load is supported by the truss and less by the wall. The rafterbeing shorter in Fig. 292, however, the actual amount of steel re-quired will be about the same in the two trusses. Which of the twotrusses would be the most economical for any given roof will… … --10--~* 10 * 10 T?=1665 Truss Diagram d Fig. 292. They have no bearing on the stress diagram, i. e., with the samepanel loads the stresses will be the same for a truss of twice the span,as long as the inclination of the members remain unchanged. Problem 18, Fig. 293. In this example we have a…
