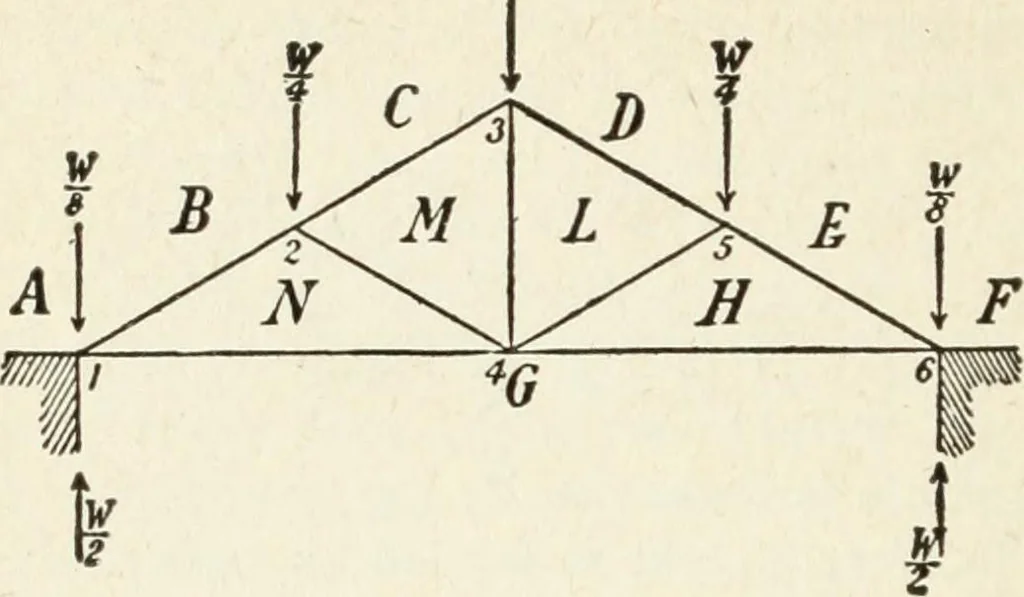

principalrafter, N G the tie beam, and the upward force. A G—the reaction at the point of support. Of these fourforces the amounts of two, A B and A G, are known;it is required to determine the nature and amounts ofthe stress of B N and of N G when acting at the anglesgiven. Commencing Fig. 42 by… … Fig. 41.
