Building construction and superintendence, by F.E. Kidder ... (1896)
Kidder, Frank E. (Frank Eugene), 1859-1905 · New York, W.T. Comstock · leaf 293

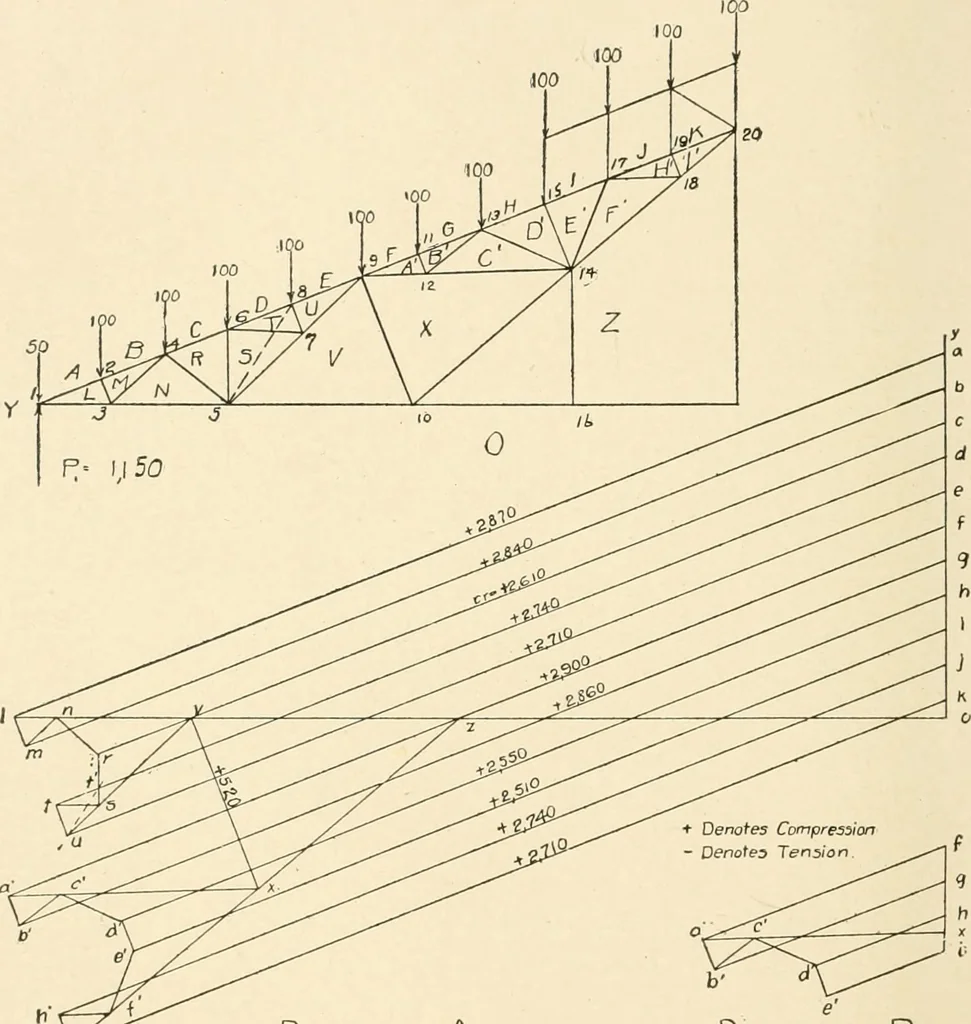

oad. Prac-tically the loads at the truss joints mentioned may be considered to be those dueto panel loads the same as at the other joints. 284 BUILDING CONSTRUCTION. readily drawn until we come to joint 6, when it is necessary to fin.It u, and v, as in Prob. 23. At joint 9 we also have three… … Diagram A Pig. 209. Stresses not given on the engraving. lo, 2625, no, 2500, vo, 2125, zo, 1375 xz, 740, zf 1335 ; zi 1475. vs. 375 ; vu, 500, Mn =st = 125. bc = fh = 147. lm, = tu = ab = de = hi = 928. nr = rs = 155. cd = ef = 195. STRESS PROBLEMS. 28: 15-14 and 14-9, considered as an independent…
