The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 334

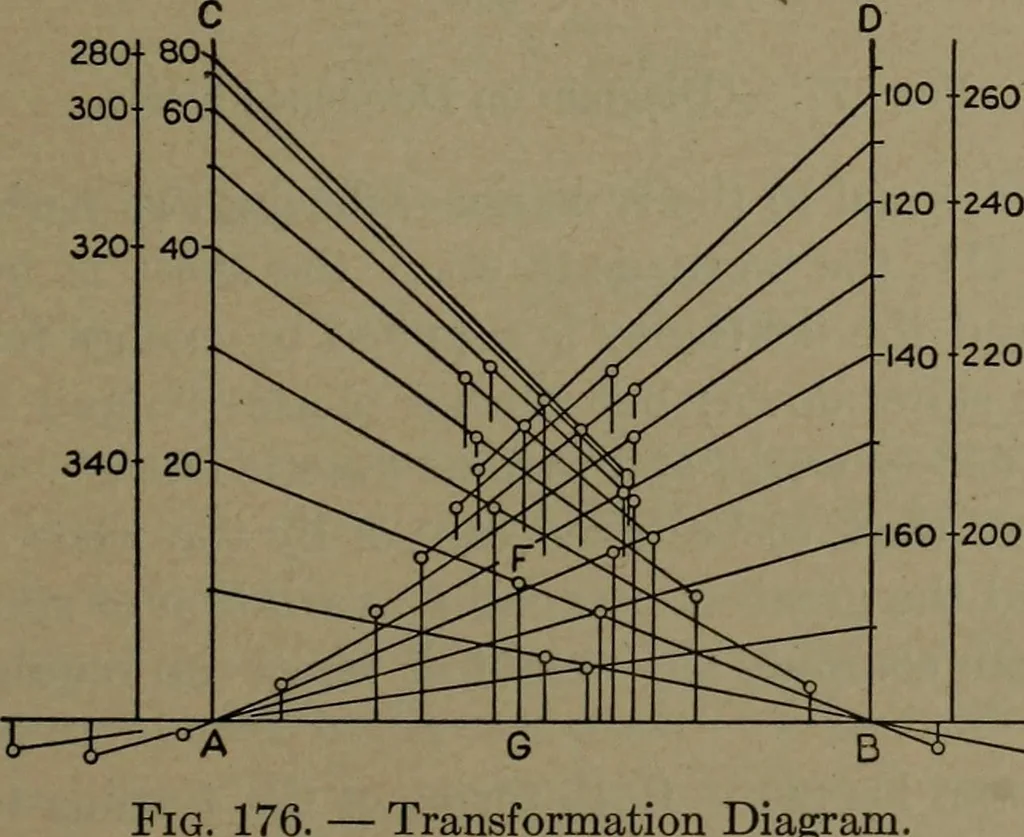

Fig. 175. — Turning-force Diagram. series of lines, values belonging to quadrants I and IV are laid up onAC, those for quadrants II and III on BD. Then the inclined linesare drawn: and for any particular crank angle, as20deg., we have only … G B^r^4 Transformation Diagram. to measure off from B, as BG, the length of P taken from its diagram,in order to get the corresponding T in GF. (/) Diagrams of Turning Force. — Values of T having been de- 318 WORKING AND CONSTRUCTION OF THE ENGINE. [Chap. VII. termined, they can be laid out either…
Steam-engines · Steam-turbines
