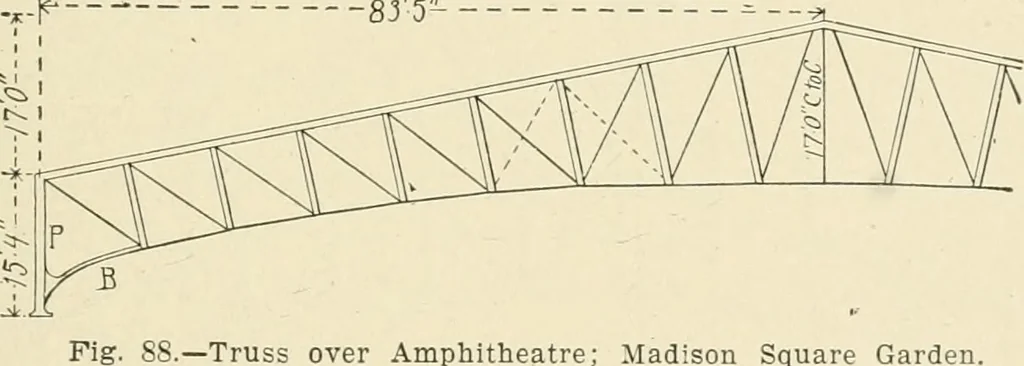

Fig. 87.—Typical Quadrangular Truss. … Truss over Amphitheatre; Madison Square Garden. eye-bars being used for the tension members, and one end of thetruss is on rollers. Fig. 88 gives the proportions of similar trussesover the amphitheatre of the Madison Square Garden, New York.*In both of these trusses the posts and braces at the ends…
