Kidder, Frank E. (Frank Eugene), 1859-1905, Nolan, Thomas, 1857-1926 · New York : W.T. Comstock · leaf 192

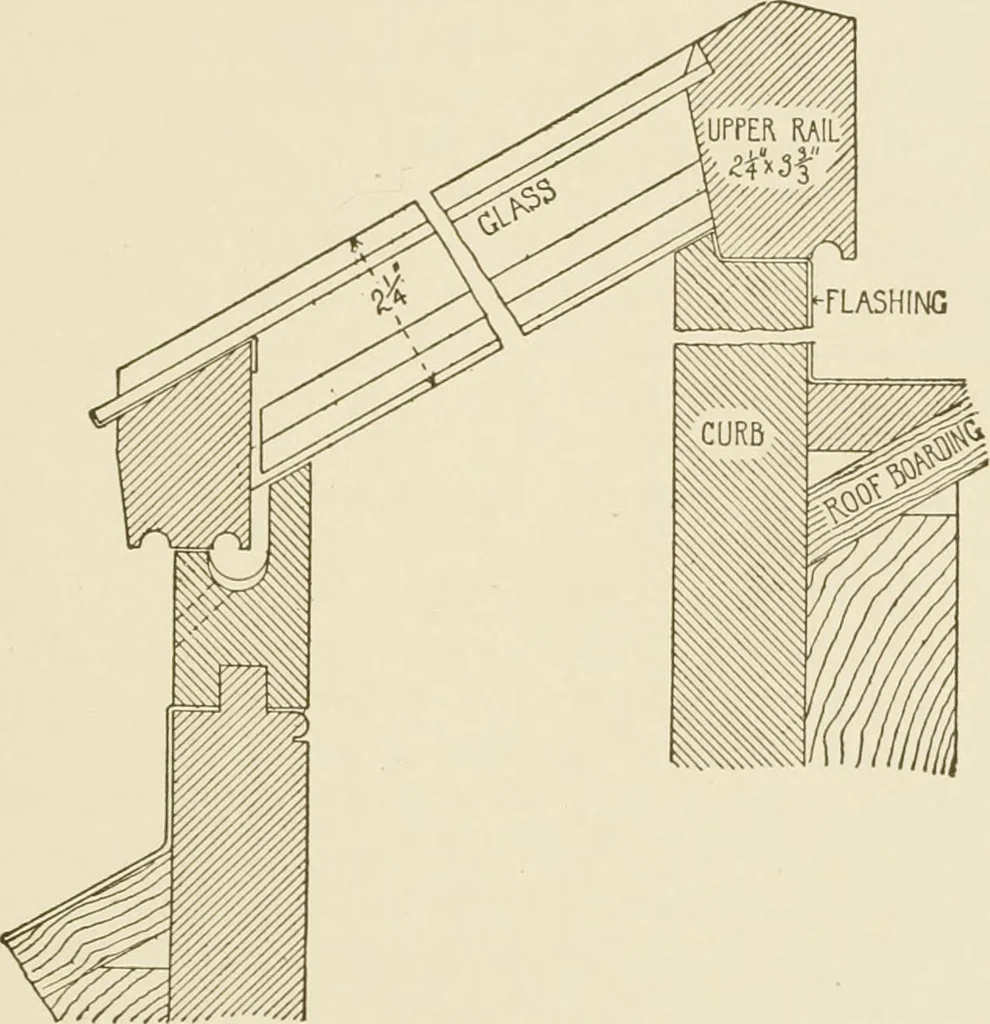

highest at the middle and fallingto each side. The lining of this gutter should extend well up on theroof, and should be turned over the edge of the frame into a groovewhich should be graded to drain off the water at the sides If thesash is to open it should be hinged at the top and a strip of… … Fig i67(T. flashed with tin (or zinc) shingles the same as around a chimney,the flashing being carried to the top of the frame. At the bottom of the frame it is better to use a wide piece of gal-vanized iron for the flashing, as this will stay in place better than tinor zinc. For taking care of the…
Building
