Kidder, Frank E. (Frank Eugene), 1859-1905, Nolan, Thomas, 1857-1926 · New York : W.T. Comstock · leaf 366

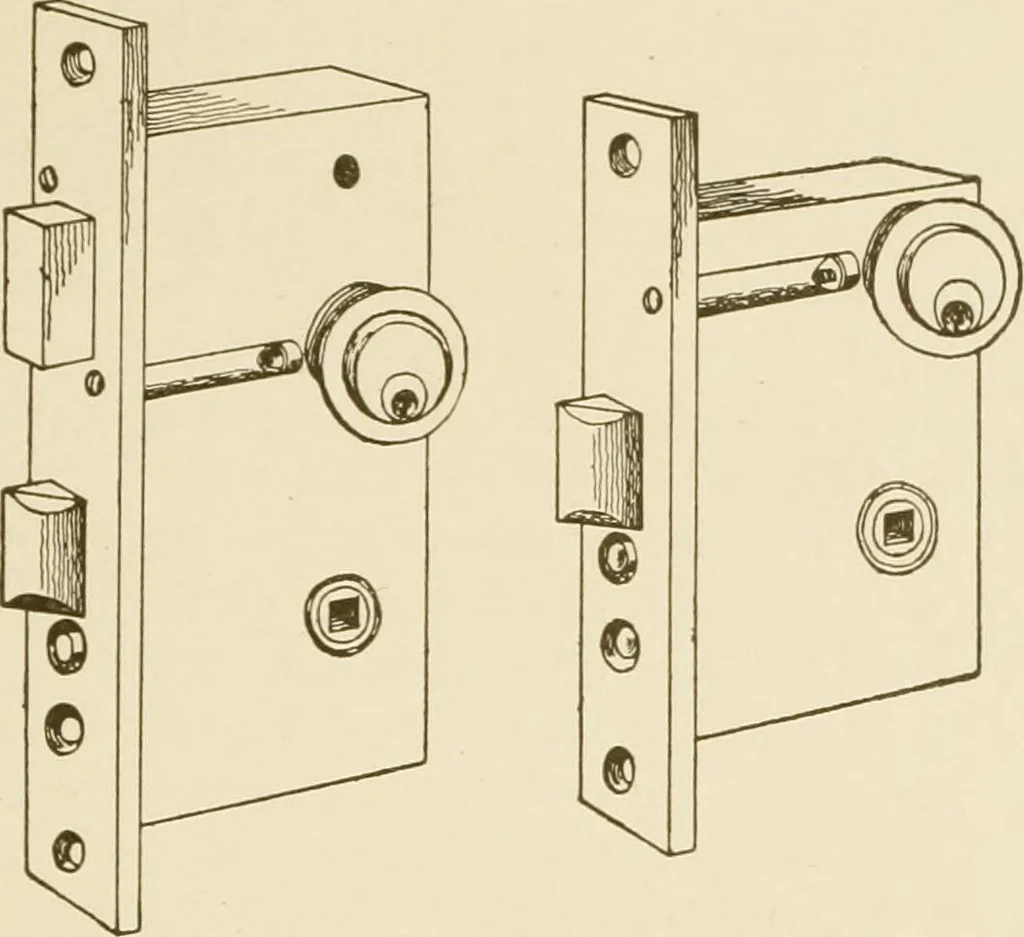

r lock, but with the dead bolt omitted. The front and vestibule doors of nearly all first-class residences arenow usually trimmed with cylinder escutcheon locks, with whichone small key operates both the latch and dead bolt of the front dooXand the latch of the vestibule door. FINISHED HARD \VARE—L… … Fig. 385 —Yale Front Door Lock and Vestibule Latch. Sliding Door locks and Pulls.—The common form of sliding doorlock is that shown in Fig. 386, the curved bolt being operated by akey from both sides. The flush pull is pushed into the case when the door is closed, or may bepushed in by the hand,…
Building
