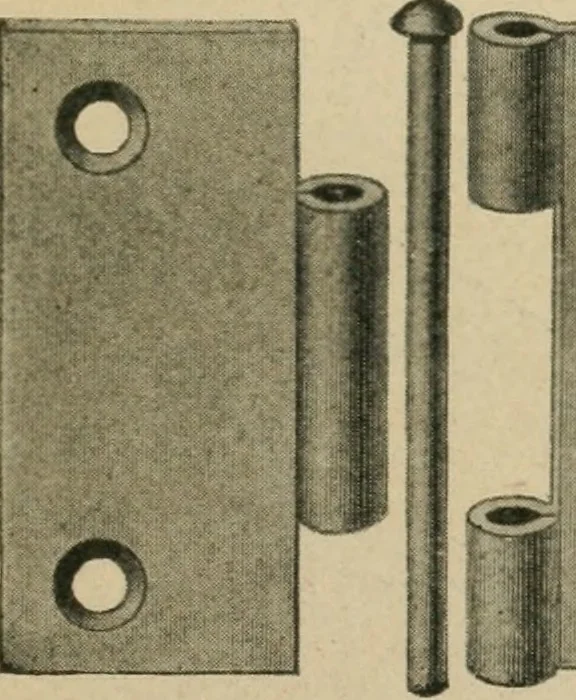

is tohold hinge and gauge as shown in Fig. 274. If the door anH casing, or case side, are to be flush, the lines should bedrawn on both the edgeof the casing and theedge of the door stile,with the gauge set for thesame space. If the partsare not to be flush, thenthe difference required isFig. 270.… … O O 262 ELEMENTARY CABINETWORK
