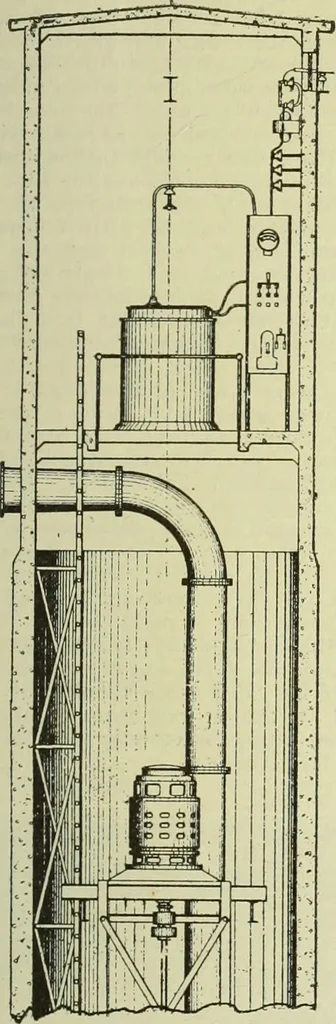

of the volute, and theopening of these passages balances the pumpand stops the impeller in proper alignmentwith the volute, thus carrying the weight ofthe impeller and shaft always on a waterthrust. This water thrust is adjustable by means ofa plug attached to a lever and rod leadingup to the motor… … bolted and lifted out and the frame and pumpthen lifted out independently for examination.The discharge pipe is composed of galvanizedriveted iron pipe hung in the caisson in thesame way as the motor and frame. Theremainder of the electrical equipment con-sists of 10,000-volt oil switches, a 10,000…
