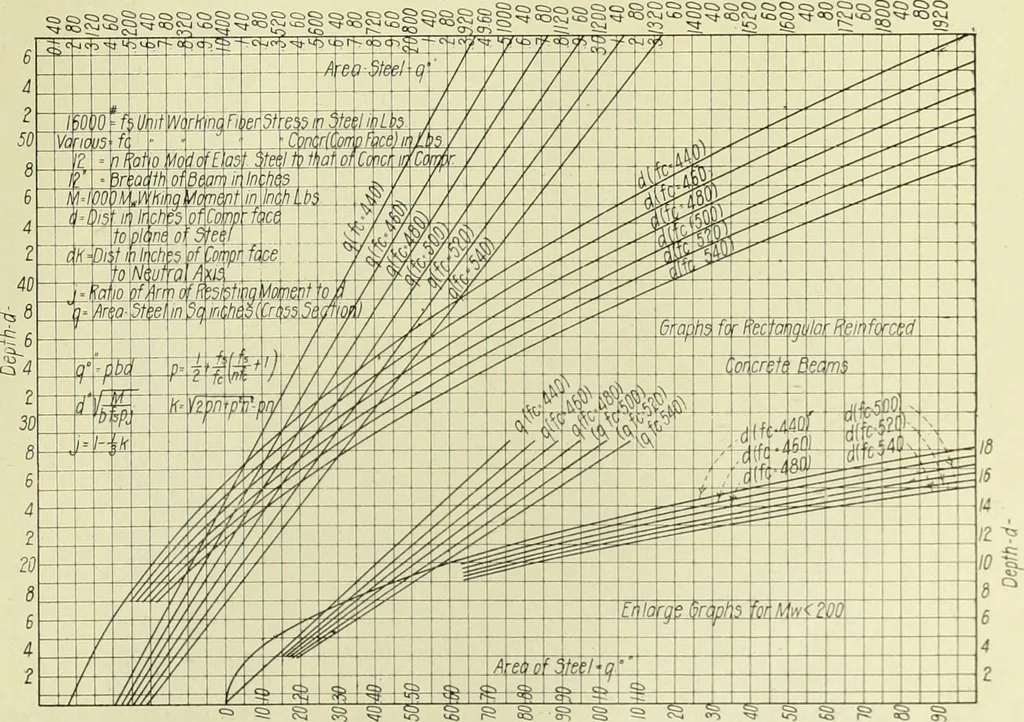

as been the custom to use theheavy arch, designed for engine load, for thefull width of railroad right of way. The value of R to be used in the formulawill be from 0.8 to 1.5 ft. greater than theinside radius of the arch. If the differenceis taken as 1 ft., the error will be small. With these… … Mw-Working - Moments in Thousands In. LbsFig. 9. Concrete Diagram. the bending moments at the crown, 60° pointand spring line. The method of applying theformulas bas been somewhat as follows : The two points was determined as for an ordinary-concrete beam. This thickness and the amountof steel were…
