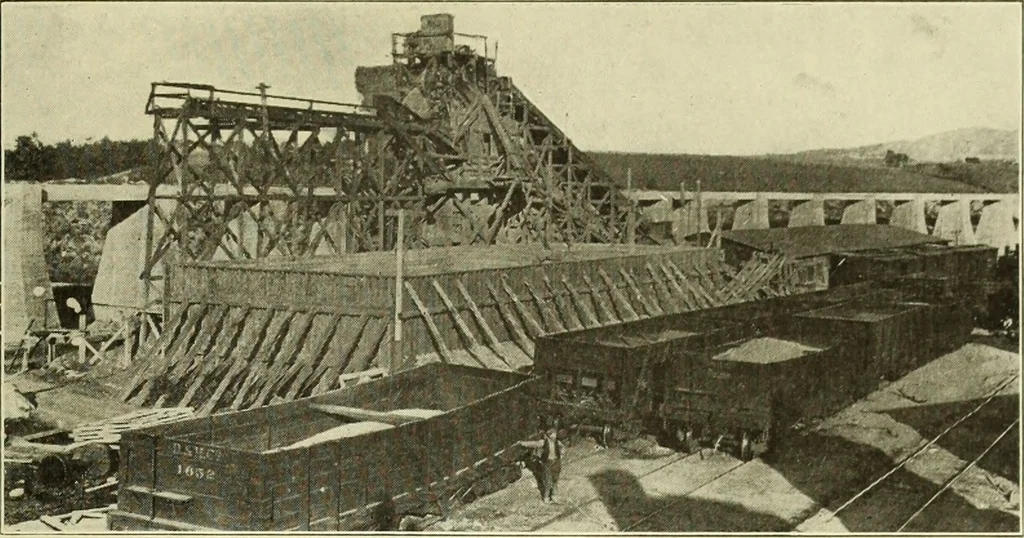

Sta. 267 and extends the floods of the Mohawk River. The mason-ry for the guard gate consists of two abut-ments and a center pier. Beyond the guardgate, there are two standard retaining walls,similar to the ones described, extending tothe river. grade to the tracks, so that the cars can readilybe… … Fig. 3—View of Contractors Storage and Mixing Plant. Material Handled EntirelyBy Belt Conveyors. Concrete Docking Between Locks IsShown In Background. Just below this junction on the Mohawk, theCrescent Dam is situated, which, when com-pleted, will raise the water high enough togive a minimum depth…
