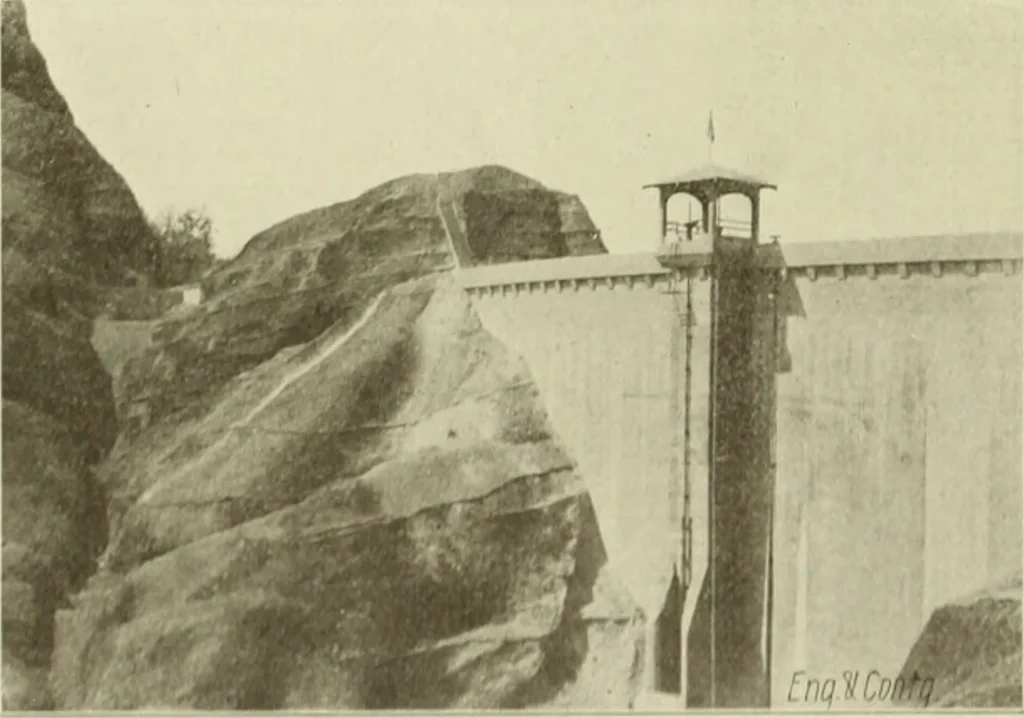

Fig. 2—Excavation for East Park Dam,Showing Rock Buttresses. sion. Figure 2 shows the large natural rockbuttresses disclosed by the excavation, whichmake an ideal bond for the concrete dam. Good sand and gravel for concrete werefound in the immediate vicinity of the damor within a hauling distance…
