Buildings and structures of American railroads. A reference book for railroad managers, superintendents, master mechanics, engineers, architects, and students (1893)
Berg, Walter G. (Walter Gilman), 1858-1908 · New York, J. Wiley & Sons · leaf 123

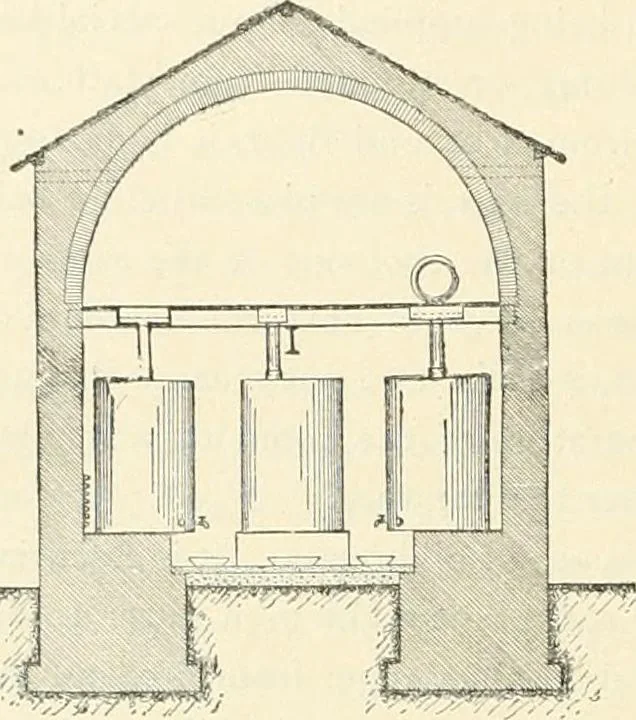

set on brick benches. There is a cast-iron boxin the upi)er floor over each tank witii a screen and pipe leading ti. the tank underneath. Cast-iron 84 BUILDINGS AND STRUCTURES OF AMERICAN RAILROADS. drip-boxes are placed under the faucets in front of each tank to catch any drippings. Three… … Fig. igo.—Cross-section. ~ ,1 ^ 1 ^ rl i v_. IL=J ff=f ^ ^ : 0 r* •4 0 ] \~ 1 n Jp< 0 H 3 ° ) A \ ^ ^>—^ ?^\l I ■^t=== 5 ■ ■■ • Fig. iqi.—Gkound-tlan. placed in the tanks nearest the steam coils, while the lighter oils, as signal and headlight oil, are placedin the tanks on the opposite side…
Railroads -- Buildings and structures · Buildings
Internet Archive · Public Domain Mark 1.0. Free to use for anything.
