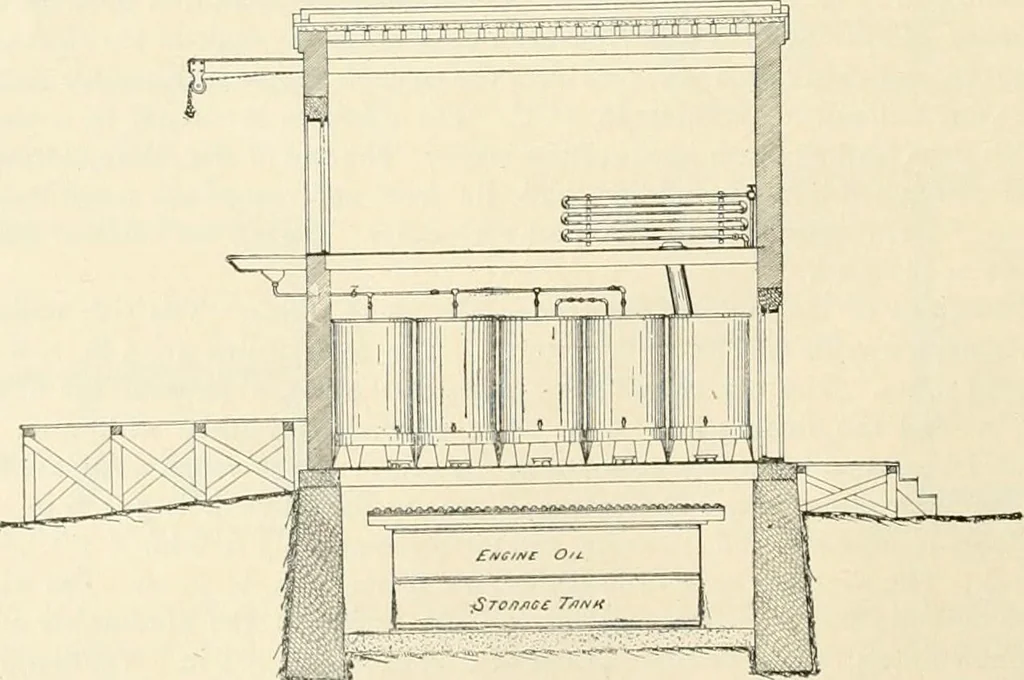

Fig. 207.—Longitudinal Section.C3^ ■ zz Fig. 208.—Cross-section. O O o o % W/1ST£. Fig. 209.—GKouMi-rLAN.Brick Oil-storage Hatisc at Western Avenue, Chicago, III., Chicago, Burlington &= Quincy Railroad.—The oil-storage house of the Chicago, Burlington & Quincy Railroad at Western Avenue,… … FlG. 210.—LONGITUIIINAL SECTION. OIL-STORAGE HOUSES. 91 cal Engineer, C, B. & Q. R. R., is a two-story brick structure, 20 ft. 8 in. X 19 ft. 4 in., with cellar.The structure is fireproof throughout. The foundations are stone walls. The floor-beams,roof-purlins, and rafters are iron T-beams,…
