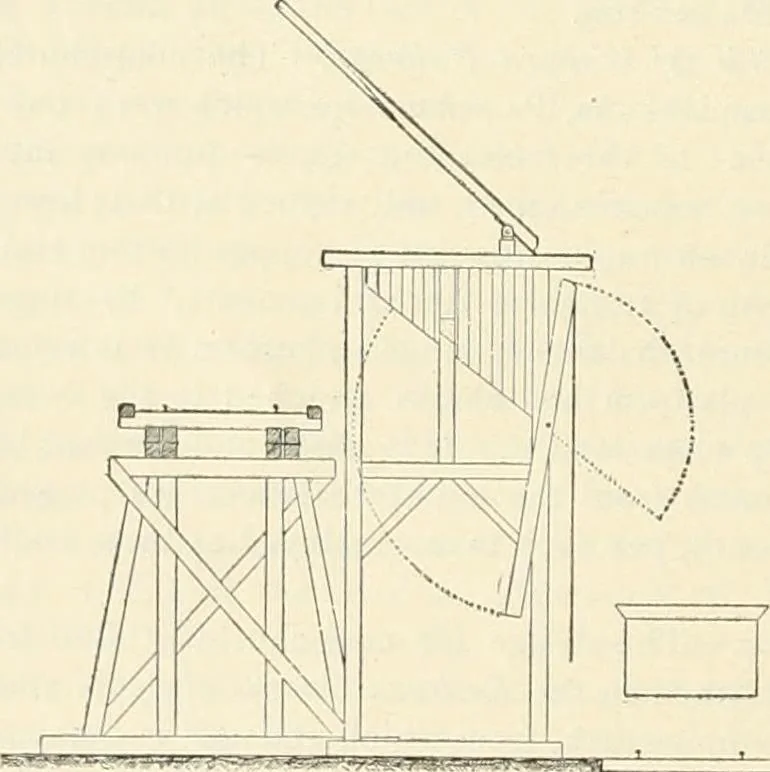

n. X 12 in.; batter-posts, 10 in. X 12 in.; cajis, 12 in. X 12 in. X 12 ft. long; brace-plank, 3 in. X 10 in.; stringers, 2 pieces, 8 in. X 16 in., under each rail ; ties, 6 in. X 8 in. X 10 ft.long ; guard-rails, 6 in. X 8 in. The dimensions of the i)riniipal timbers used in the construction ofthe… … COALING STATIONS FOR LOCOMOTIVES. 153 Cual-chiitis at Black Liianioinl Mine, Wabash, St. Louis &- Tacijii RailuHiy.—The cual iliutthe Black Diamond Mine, Wabash, St. Louis cVPacific Railway, designed by Mr. Charles Hansel,Resident Engineer, shown in Fig. 282, is arrangedto allow mine cars from…
