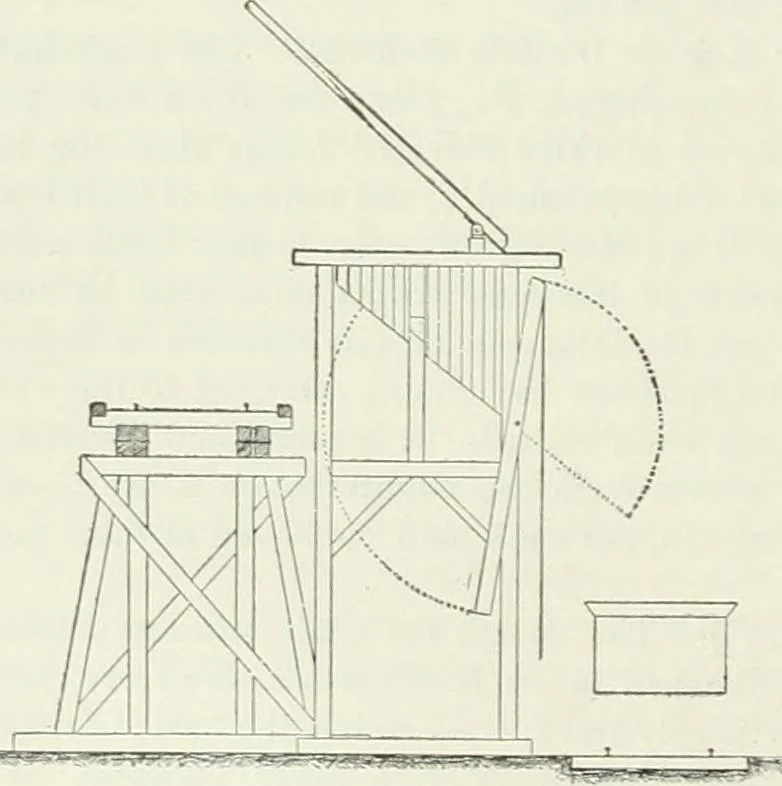

12 in. X 12 in.; batter-posts, 10 in. X 12 in.; caps, 12 in. X 12 in. X 12 ft. long; brace-plank, 3 in. X 10 in.; stringers, 2 pieces, 8 in. X 16 in., under each rail ; ties, 6 in. X 8 in. X 10 ft.long ; guard-rails, 6 in. X 8 in. The dimensions of the principal timbers used in the construction… … Fig. 2S1.—Cross-sfxtion. COALING STATIONS FOR LOCOMOTIVES. 53
