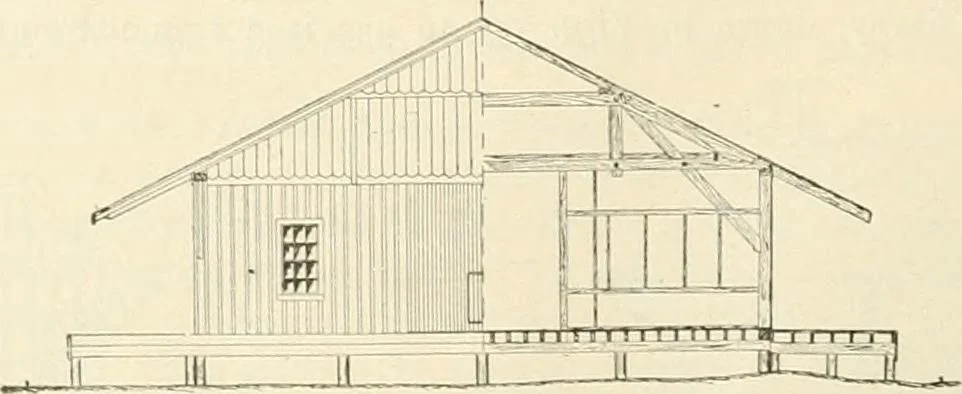

Fig. 361.—Front Elevation. long, or any other lengtli desired, surrounded by platforms on all sides. The platforms on the frontand rear are 10 ft. wide, while at each end of the building the platform is widened, with an incline … Fig. 362.—End Elevation anp CRnss-srcTioN. leading up to it. There is a track along the front and rear of the building, the nearest rail of eachtrack being located 3 ft. 6 in. from the face of the platform. The jjlatform is set 3 ft. 8 in. above FREIGHT-HO USES. 217 the top of the rail, aiul the…
