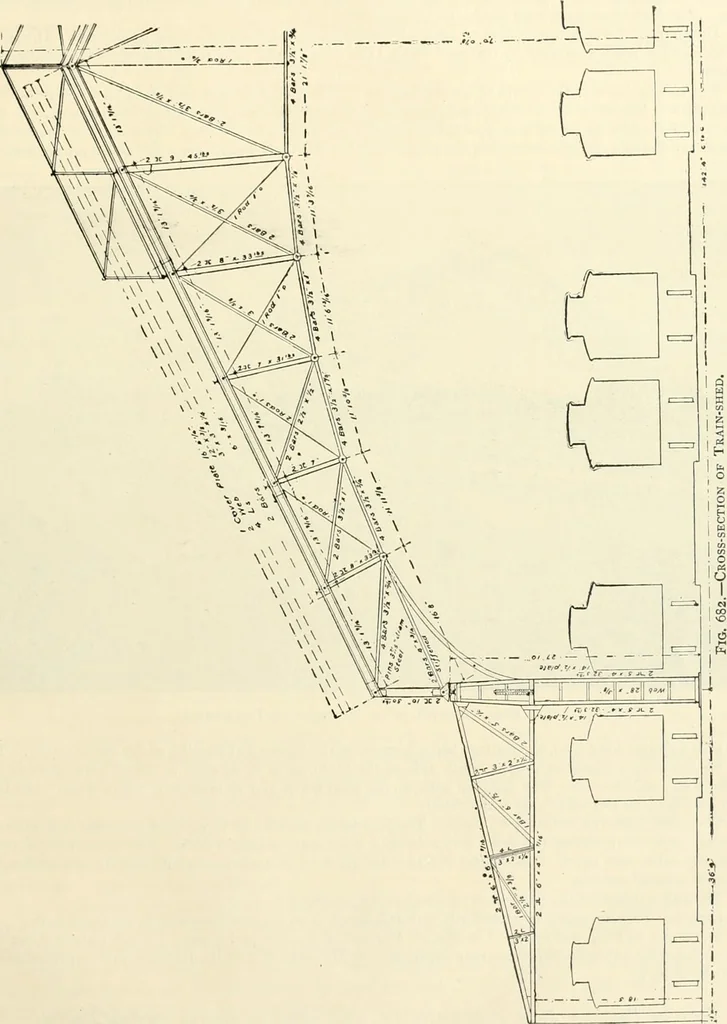

TERMINAL PASSENGER DEPOTS. 435 … •,ttti*9 •¥»•►? 436 BUILDINGS AND STRUCTURES OF AMERICAN RAILROADS. The truss of ihe truin-shed roof is shown in the accompanying half-section. Tlie trusses are spaced 32Jft. The lean-to roofs are tin, tlie others slate. Extending the length of the train-shed is a monitor roof ofglass. Fixed…
