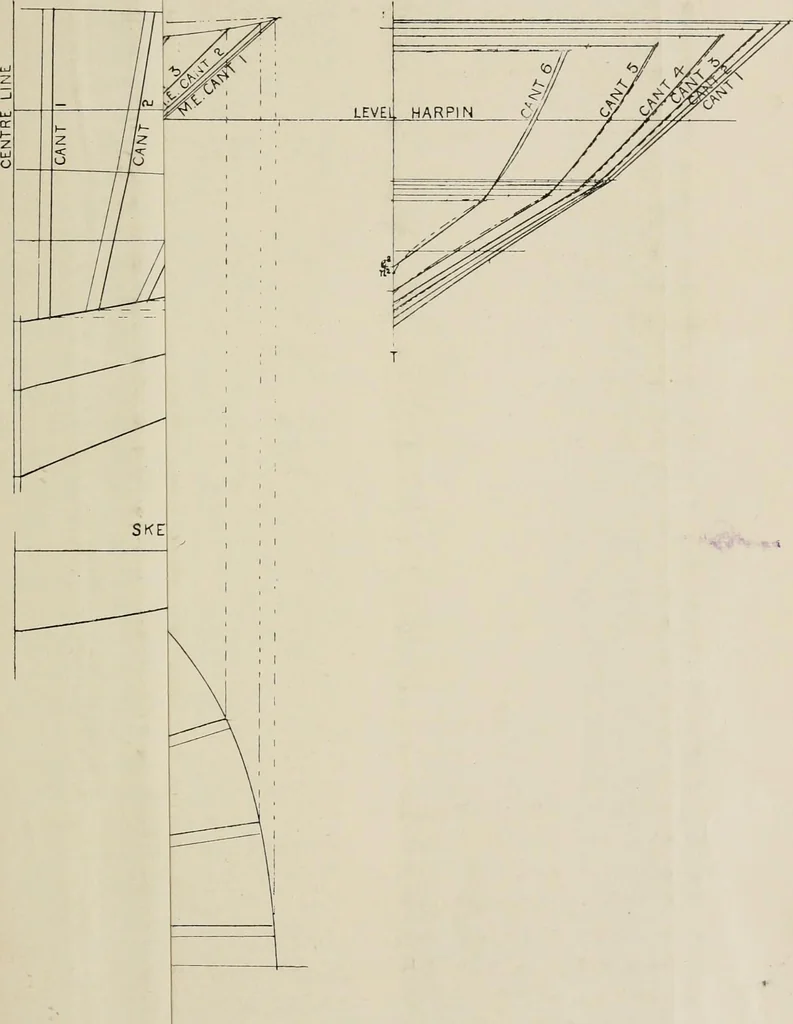

b1. This process is repeateduntil all the cants are shown in their true position in the Sheer. Projection of the Bevelled Edge into the Sheer.—Squarepoints //, //, /, and / on to their corresponding lines in the Sheer, andtransfer T /into the Body, as in the moulded edge, and square over/1to/2,… … BODY EXPAN5ION OF CANTS
