Buildings and structures of American railroads. A reference book for railroad managers, superintendents, master mechanics, engineers, architects, and students (1893)
Berg, Walter G. (Walter Gilman), 1858-1908 · New York, J. Wiley & Sons · leaf 48

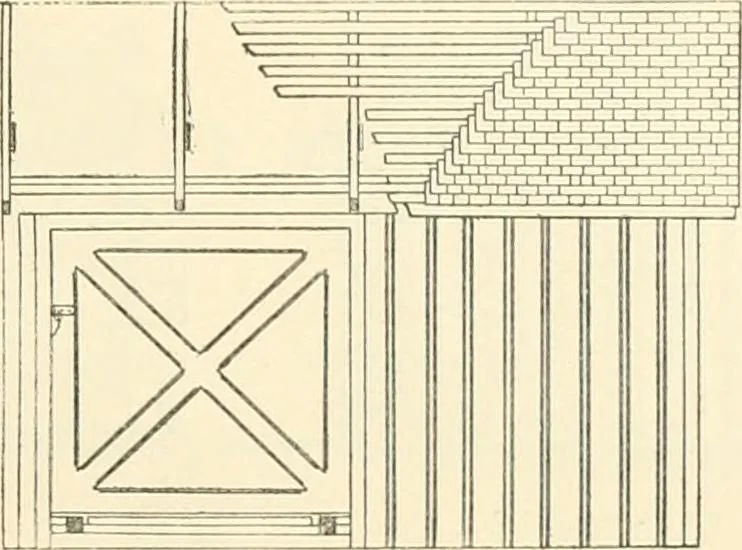

sizes are as follows: sills, 4 in. X 4in.; plates, 2 in. X 4 in., double; corner-posts, 4 in. X4 in.; studs, 2 in. X 4 in.; door-studs, 2 in. X 4 in., double; nailing-jneces, 2 in. X 4 in.; rafters,2 in. X 4 in., spaced 42 in. between centres; collars, i in. X 6 in.; roof-boards, i in. X 6 in.,… … Fig. 22.—Front Et.kvation.
