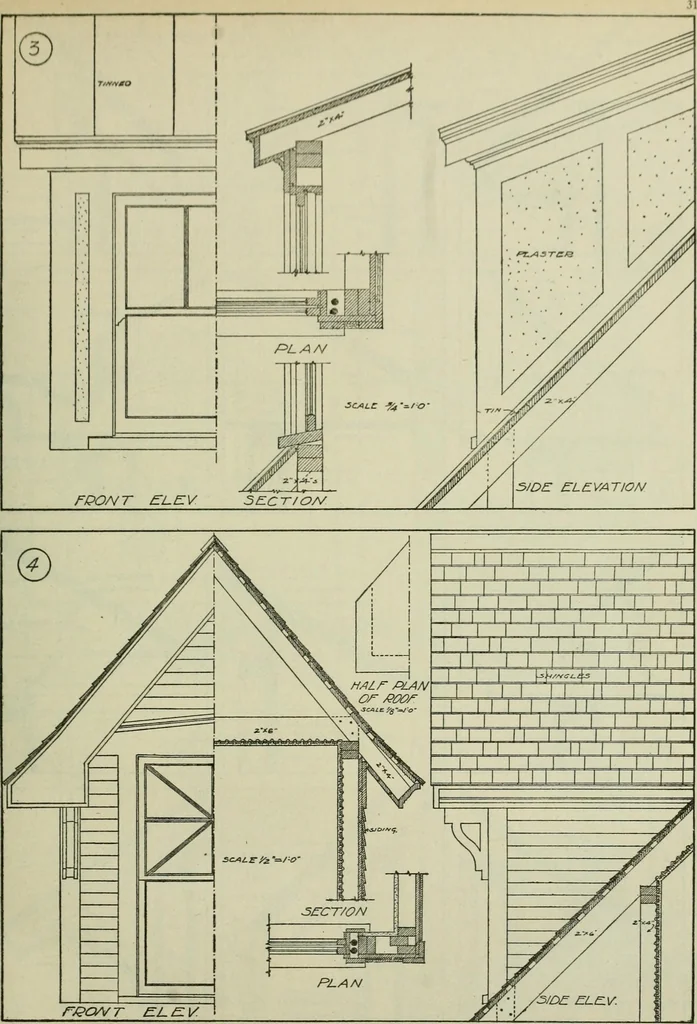

~ XALC Jjtm,O- WATION PLATE 22—ROOF DORMER WINDOWS 1—A shingled hip-roof dormer of the popular 2—Colonial dormer with semi-circular endinexpensive type used with many variations on gable. The sides of this dormer are preferablyshingled houses. covered with lap siding and the roof is tinned. … r/?CWT £L£1V. PLATE 23—ROOF DORMER WINDOWS 3—Sloping roof dormer. The simplest kind of 4—Gable end dormer, appropriate on steep-a dormer and very satisfactory if the main roof roofed buildings. All of these dormers are wellrises high enough to allow it. suited for both new and remodeling work.
