Buildings and structures of American railroads. A reference book for railroad managers, superintendents, master mechanics, engineers, architects, and students (1893)
Berg, Walter Gilman, 1858-1908 · New York Wiley · leaf 160

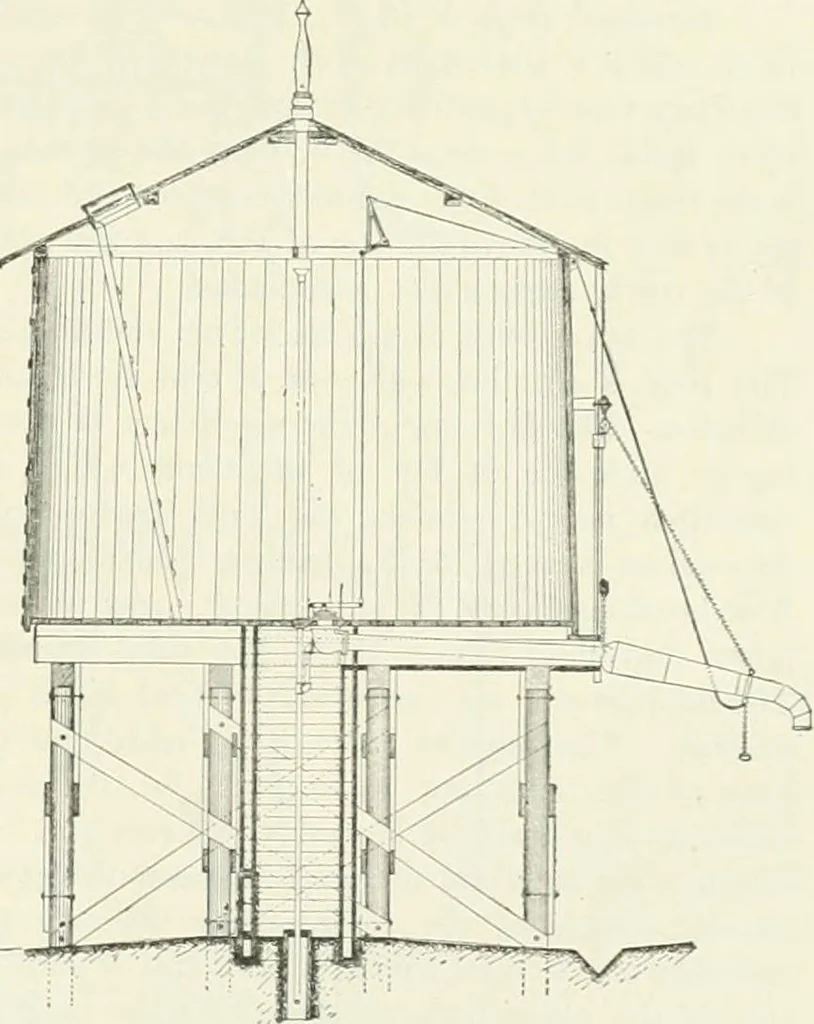

h the floor to theoutside of the tank, where it discharges into a galvanized-iron goose-neck or delivery-spout. Thedischarge-pipe at the bottom of the tank near the centre of the floor is closed by an ordinary lid-valveoperated by levers and a rope over pulleys from the outside of the tank. The… … Fro. 261.—CUOSS-SECTION. 124 BUILDINGS AND STRUCTURES OF AMERICAN RAILROADS. Standard, 16 ft. X 24//., Ciiciilar IVatfr-faii/;, Atchison, Topeka (S- Santa Fe Railroad.—Thestandard, 16 ft. X 24 ft., circular water-tank of the Atchison, Topeka & Santa Fe Railroad is 15 ft.6 in. deep in the clear,…
